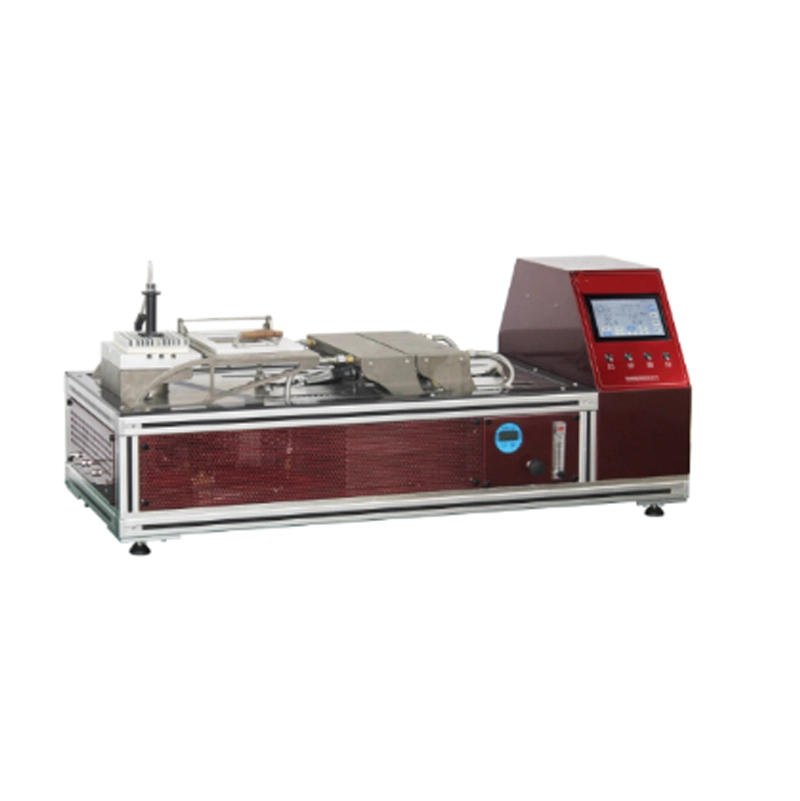

Thermal Protective Performance TPP Tester GT-RC02
Application
The TPP Thermal Protection Tester is mainly used to test the thermal insulation properties of horizontally placed flame retardant protective clothing fabrics exposed to radiant and convective heat sources.
Feature
- 1.Thermal protective performance tester (TPP) Equipped with touch screen control, simple operation.
- 2.The core control components use STMicroelectronics 32-bit microcontroller to form a multi-functional motherboard.
- 3. TPP Thermal Protection Tester Equipped with imported meter head, precise control.
- 4. The radiation source and heat flow source can be adjusted manually, which is convenient for operation.
5. TPP Thermal Protection Tester Equipped with a heat calibration calibrator, which can quickly complete the calibration to ensure the accuracy of the data.
Product Parameters
Key Specification
Model | GT-RC02 |
Specimen Size | 150×150mm |
Thermal-Flux Range | ≤100KW/m² |
Rotor Flow Meter Range | 6L/min |
Copper Heat Flow Meter Measuring Range | 0℃～300℃, resolution 0.1℃, accuracy 0.2℃ |
Timing Range and Accuracy | 0～99999.9s, accuracy 0.1s |
Power Supply | 220V 50Hz |
Dimension | 1200×450×550mm |
Weight | ≈48kg |
Standards | NFPA 1971, ASTM D4018, GB 8965.1-2009, ISO17492, NFPA2112, ASTM F2703. |
