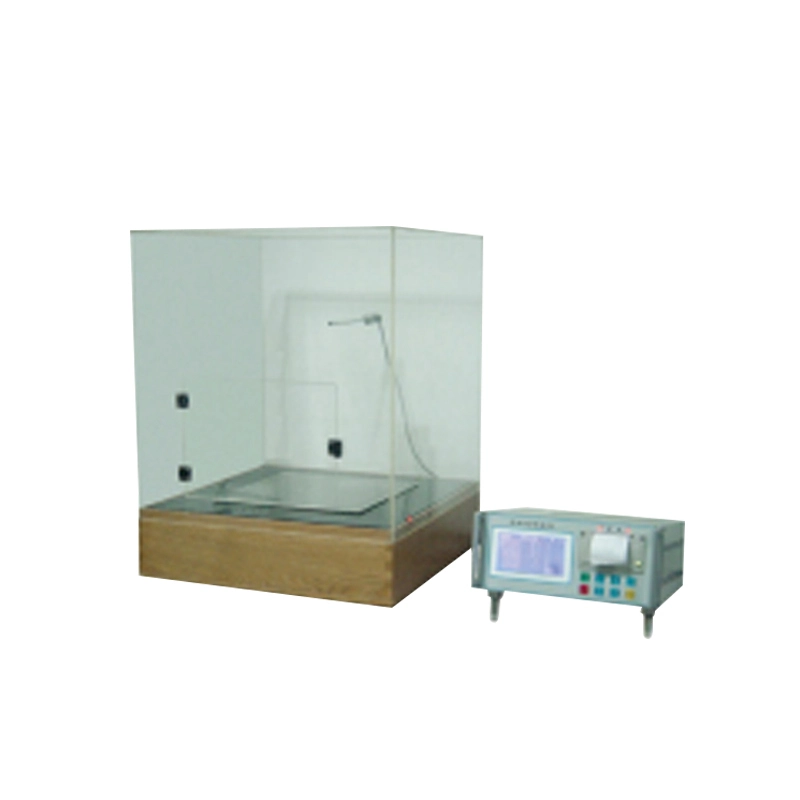

Thermal resistance performance Tester GT-C98B1
Application
Thermal Resistance Performance Tester Used for plate type constant temperature difference heat dissipation method and Thermal resistance performance of various of fabrics.
Product Parameters
Key Specification
Model | GT-C98B |
Work Mode | LCD English Menu, automatic conversion, can print out report |
Hot Plate Temperature Range | 30 ～40℃ |
Pre-heating Time Set | 0 ～60000s |
Cycles Set | 2～9 |
Minimum resolution of temperature display value: 0.1°C | 0.1℃ |
Heating plate technical parameters | Test plate 40W, Protection plate 120W, Base Plate 40W |
Test Plate size | 250×250mm |
Test bench size | 510×51×640 mm |
Electrical control box external dimension | 300×345×150 mm |
Weight | 30kg |
Power | AC 220V±5%, 50Hz ,200W |
Product Details
