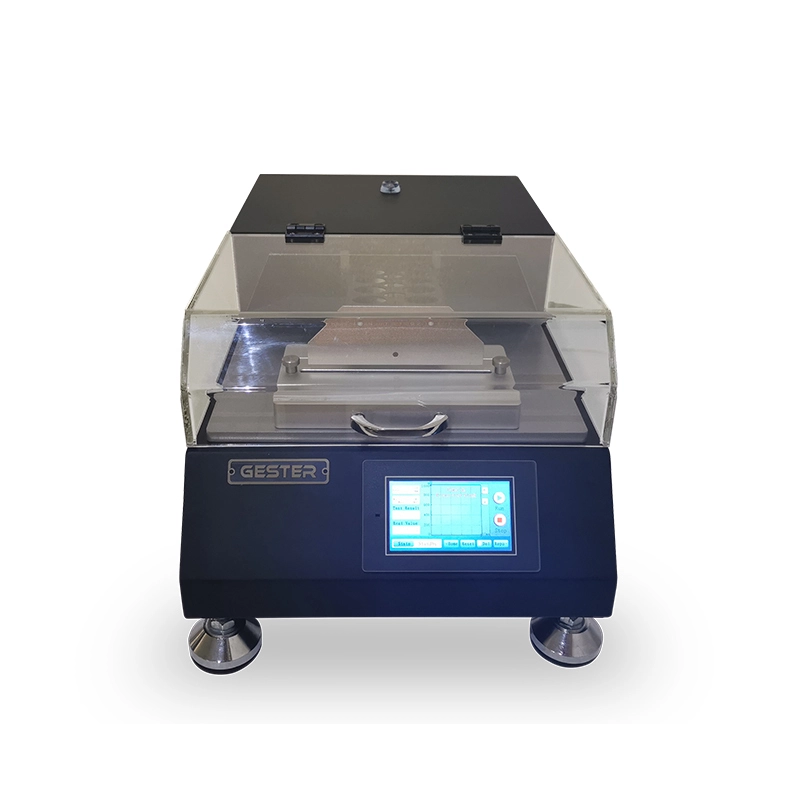

Toilet Paper Softness Tester GT-CN05
Toilet Paper Softness Tester GT-CN05
Application
Softness tester can be used to determine the softness of high-grade toilet paper, tobacco flakes, fiber paper products and other materials.
Feature
1. The measuring mechanism employs a lever principle to minimize data fluctuations caused by vibration interference.
2. A stepper motor-driven transmission system ensures stable operation, high precision, and reliable performance.
3. Equipped with a high-definition color touchscreen for intuitive and user-friendly interaction.
4. Integrated high-precision force sensor guarantees accurate test results.
5. Real-time display of force values and dynamic test curves enables effective process monitoring.
6. Large-capacity storage system supports recording of 30 groups × 20 test cycles, with separate classification for horizontal and vertical data.
7. Data report function is perfect for query and printing.
8. Built-in micro thermal printer provides statistical analysis of test data, delivering clear printouts with low operational noise.
Standards
GB/T8942, ASTM D 2923, TAPPI T 498, INDA IST 90.3, EDANA WSP 90.3
Toilet Paper Softness Tester GT-CN05 Key Specification
|
Testing Range |
10-1000mN |
|
Testing Resolution |
0.1mN |
|
Indication Error |
≤±1% FS (20% or less of the upper limit of the measurement is allowed to exceed the specified range 1mN) |
|
Indicative Variability |
<1% |
|
Test Head Stroke |
(1.2±0.5)mm (can be set) |
|
Test Head Press-in Depth |
8mm+0.5mm |
|
Slit Width |
5mm; 6.35mm; 10mm; 20mm (Width error should not exceed ±0.05mm) |
|
Testing Speed |
(1.2±0.24)mm/s |
|
Printer |
Thermal printer |
|
Power Supply |
AC 220V±10V 50Hz |
|
Dimensions |
560×340×250mm |
|
Weight |
25kg |
