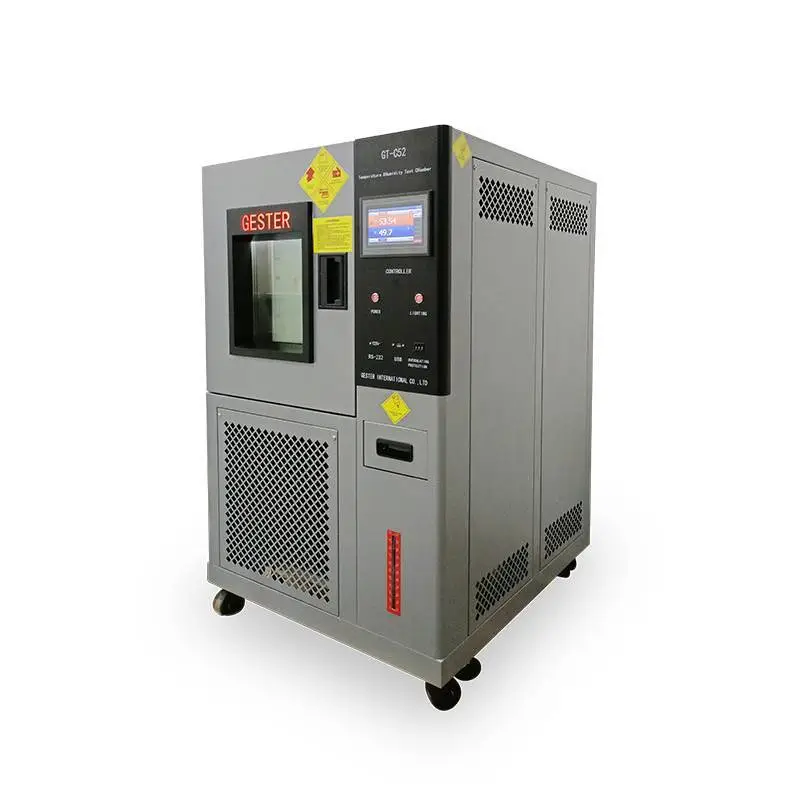

Two Chambers Temperature And Humidity Test Chamber GT-C52D
Application
Temperature And Humidity Test Chamber For conditioning of samples prior to testing. It also can be used for a variety of materials of high - low temperature alternating test. The test temperature, humidity and time can be programmed.
Feature
- 1.Bigger storage space and load heating value within same volume.
- 2.Use PWM cooling scheme when low temperature operation.
- 3.Avoid dew formation of the specimen.
- 4.RS232 connector and USB Storage function.
- 5.Equipped with detection system and wireless alarm system.
Product Parameters
Test Space Options
Capacity | 80L | 120L | 150L |
Inside dimension WxHxD(cm) | 40x50x40 | 40X50X60 | 50X50X60 |
Outside dimension WxHxD(cm) | 105X158X164 | 105X158X184 | 115X158X184 |
Key Specification
Temperature range (optional, can be custom-made) | -20～150℃, | -40～150℃, | -60～150℃ | ||
Humidity range | 20%～98%, can be set. | ||||
Rate of temperature increasing | Room temperature～150℃ | About 45 minutes(non-linear no-load, about 3.5℃/minute | |||
Room temperature～-20℃ | About 45 minutes(non-linear no-load, about 1.2℃/minute) | ||||
Machine precision | Control accuracy (test precision) | Temperature | +/-0.5℃ | ||
Humidity | +/-1%RH | ||||
Distribution accuracy (uniformity) | Temperature | +/-1.0℃ | |||
Humidity | +/-2%RH | ||||
Environment temperature | 5℃-28℃ | ||||
Environment relative humidity | ≤85%RH | ||||
Power switch | Air-break switch(40A, knife switch or outlet is prohibited to use.) | ||||
Humidification water | Resistivity(≥500MΩ) | ||||
Requirement of ambient air quality | Do not contain high concentration dust and flammable gas, without strong electromagnetic radiation source nearby. | ||||
Power supply | AC1￠220V 50/60HZ OR AC3￠380V 50/60HZ, voltage change allowed value: ±10% of fixed voltage. | ||||
Standards
| GB/T10589-1989;GB/T10586-1989;GB/T10592-1989; GB2423.1-89 low-temp test Aa, Ab; GB2423.3-93(IEC68-2-3)Ca; GB/T2423.4-93(MIL-STD810) method 507.2-3; GJB150.9-8; GB 2423.34-86; MIL-STD810Dmethod502.2; MIL-STD883C method 1004.2; IEC68-2-1 method A; IEC68-2-2 test B; IEC68-2-14 test N | ||||
