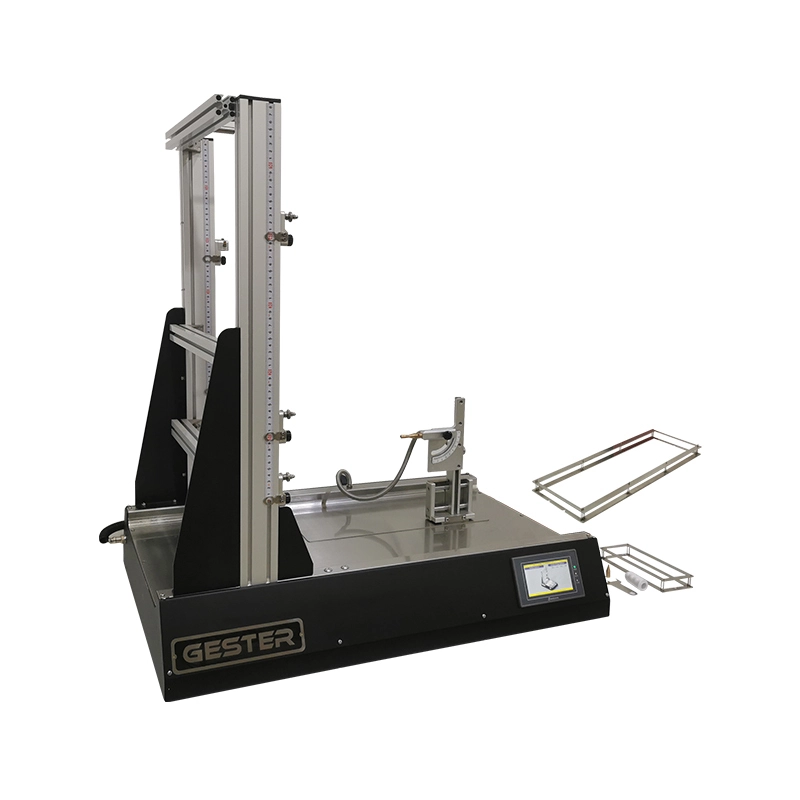

Vertical Combustibility Tester GT-C35B
Brief Introduction of the product
Application
Vertical Combustibility Tester to determine the flammability resistance of vertically oriented fabrics and soft fabric toys.
Feature
1. Including electro valve, burner and micro switch ignition strand.
20 PLC controller, friendly man-machine interface and data analysis function.
Standards
BS EN ISO 6940, 6941,15025, 14116, GB/T 5456,8746, BS 5438, BS EN 1101,1102, 1103, BS EN 14878, BS 5722, AS/NZS 1249, ISO 10047
Model | GT-C35B |
Ignition Time Range | 0-99.99S Precision 0.01S |
After-flame Time Range | 0-999.9S Precision 0.1S |
Holder size | Different by standard requirements. |
Nozzle angle | 0/ 30 / 90 degree(adjustable) |
System and Display | PLC system to control automatically |
Power Supply | AC 220V 50/60HZ |
Dimensions (L x W x H) | 600 x 700 x 1200mm |
Weight | 60kg |
Accessories
Standard accessories | 1set | (560 x 150 mm) Pin Holder frame for BS EN ISO6941,BS EN 1102, BS EN 1103 , BS EN 14878, GB/T 5456 |
1set | (190 x 70mm) Pin Holder frame for BS EN ISO6940, BS EN 1101,GB/T 8746 | |
1pc | Flame height gauge | |
1pc | Power line | |
Optional accessories | Optional | (190x 150mm) Pin Holder frame for EN ISO 15025, BS 5438, BS 5722 |
Optional | (150 x 75mm) Pin Holder frame for AS/NZS 1249, ISO 10047 |
