What is the Shoes Flexing Tester? Introduce from application, standards

What is the Shoes Flexing Tester? Introduce from application, standards

2021-07-05


What is the Shoes Flexing Tester
Introduce from application, standard

Social progress, economic development. Hundreds or even thousands of pairs of shoes can be seen everywhere for us, and can be seen in major shopping malls, but when people spend money, they also consider quality issues, which requires shoes to be tested.


Now, GESTER introduces from the Shoes Flexing Tester.

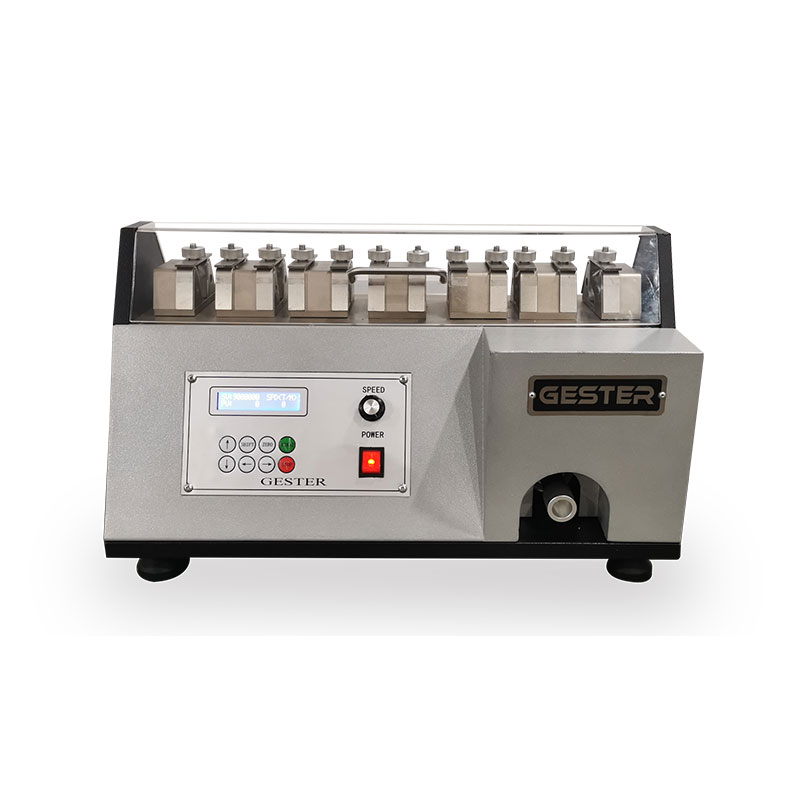

A. Upper and Vamp Material Flexing Tester GT-KC04A


1. Application

Upper and Vamp Material Flexing Tester GT-KC04A is used to determine the propensity for materials to crack or otherwise fail at flexing creases, but can also be used to assess whether leathers are likely to produce salt spue. In particular the test simulates conditions in the vamp part of footwear during walking. The test can be conducted with either wet or dry specimens at room temperature. The method is applicable to all flexible materials and in particular those used to manufacture outers and linings of footwear uppers such as leathers, coated fabrics and textiles.

2. Standards

ISO 5423 section 5.2 EN ISO 20344-2004 Section 6.5.2

AS/NZS 2210.2 Section 6.5.2 GB/T 20991 Section 6.5.2

GB20265 section 4.1 EN ISO 22288

SATRA TM25  ISO 5402-2 ISO4643

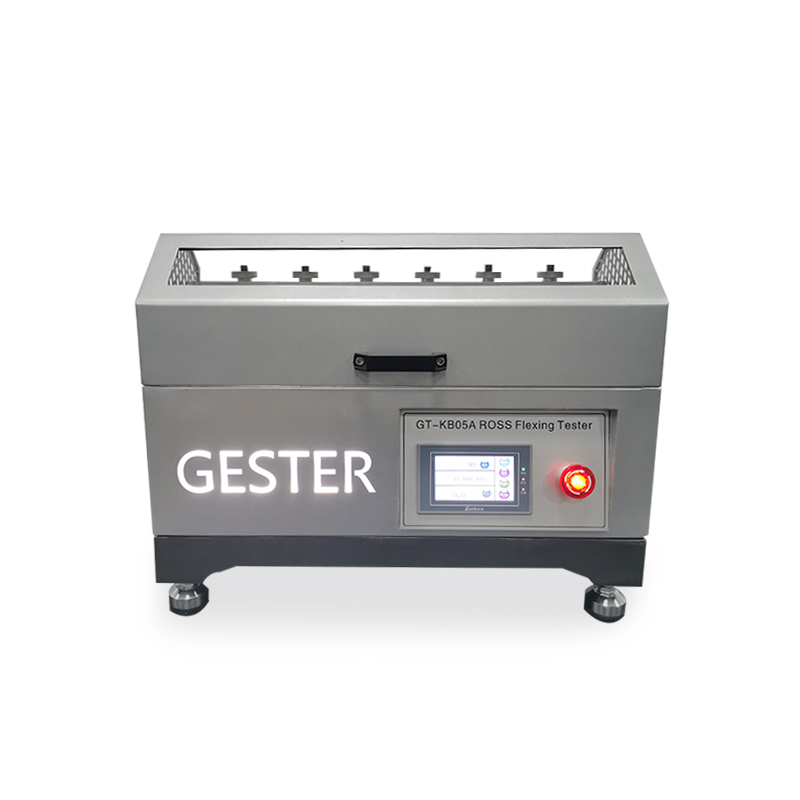

B. Footwear Testing Machine ROSS Flexing Tester GT-KB05A


1. Application

Ross Flex Tester to determine rectangular bending test of rubber products, shoe soles, PU, PVC, TPR foam and other materials. And inspect its degree of damage, cracking and reduced decline by continuously stretch and bending.

2. Standards

SATRA TM60, BS5131 : 2.1, GB 20265, ISO 5423, ISO4643

HG/T2411, ISO 20344 Section 8.5 ASTM D1052


C. Low Temperature Flex Cracking Tester GT-KC11


1. Application

Low Temperature Flex Cracking Tester GT-KC11 is used to assess the flex cracking of flexible plastic sheet materials when subjected to repetitive flexing under low Temperature.

2. Standards

DIN 53359:2006

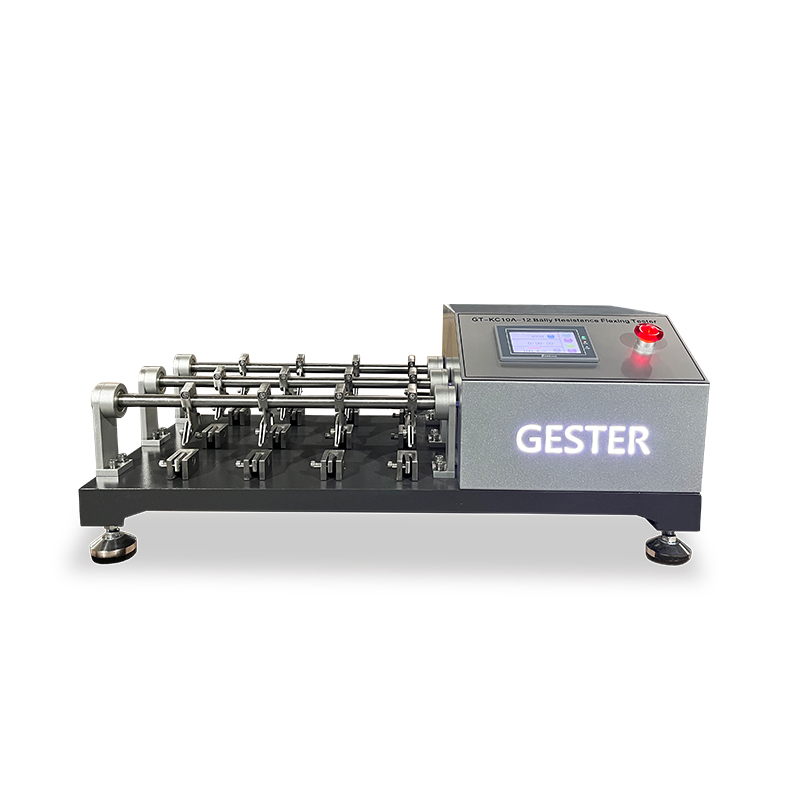

D. Bally Resistance Flexing Tester For Leather GT-KC10A


1. Application

Bally Leather Flexing Tester To determine the resistance of a material to cracking or other types of failure at flexing creases. The method is applicable to all flexible materials and in particular leathers, coated fabrics and textiles used in footwear uppers.

2.  Standards

SATRA TM 55; IULTCS/IUP 20-1;

ISO 17694 ; EN 13512 ;

EN344-1 section 5.13.1.3 and annex C;

EN ISO 20344 section 6.6.2.8;

GB/T20991 section 6.6.2.8;

AS/NZS 2210.2 section 6.6.2.8;

JIS-K6545;BS 3144 Clause 13

ISO 32100 ; DIN53351; ISO5402-1;

GE-24; ASTM D 6182

EN ISO 20344-2020 section 6.6.3

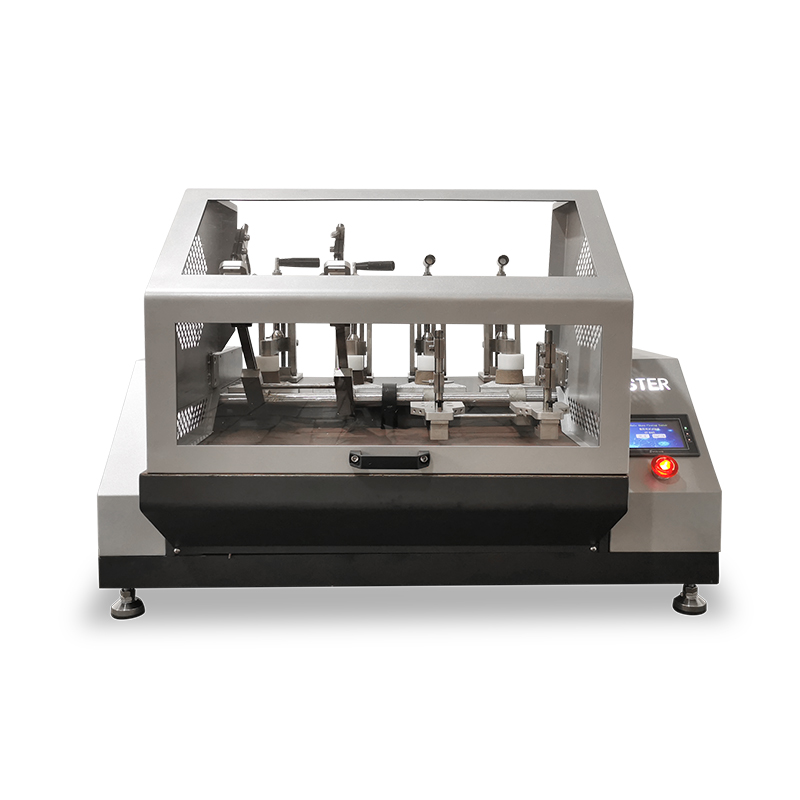

E. SATRA TM92 Whole Shoes Flexing Tester GT-KA01-2


1. Application

Whole Shoes Flexing Tester is to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexing resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency.

2. Standards

SATRA TM92
