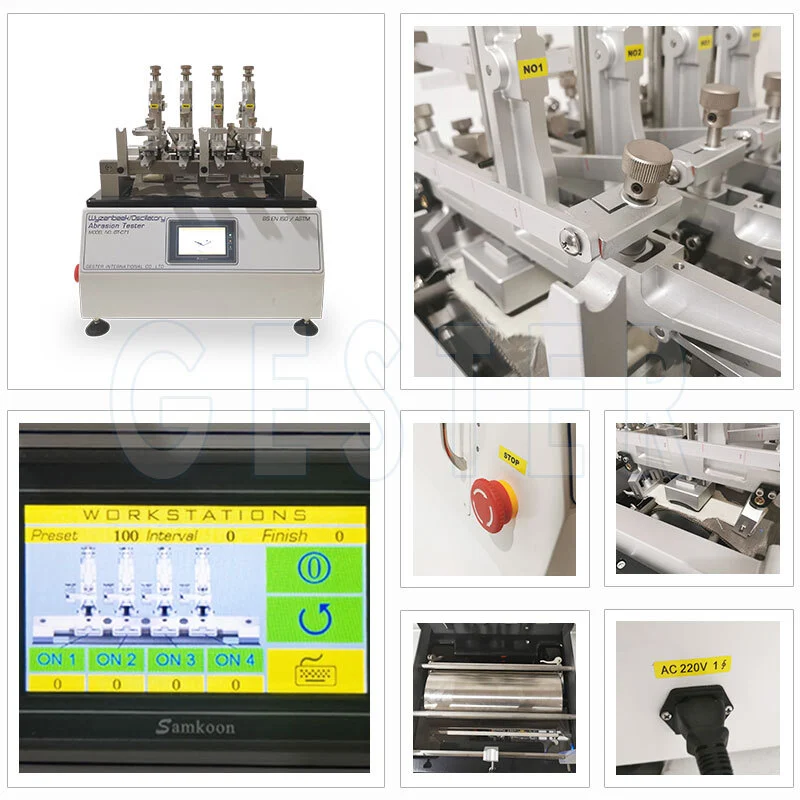

Wyzenbeek Abrasion Tester GT-C71
Application
The Wyzenbeek test is equipped with 4 test positions to determine for abrasion resistance testing of textiles, leather and other materials.
wyzenbeek abrasion tester Standards
ASTM D4157, EN ISO 12402-7
Product Parameters
wyzenbeek abrasion tester Key Specification
Model | GT-C71 |
Workstations | 4groups |
Testing heads | 50 x 50mm Bottom is rubber material |
Speed | 90+/-1 rpm |
Abrasion stage | Radian R80mm, Length 300mm |
Abrasion stroke | 76+/- 2mm (Camber length) |
Sample tension | 4 lbf(17.8N) (Can be adjusted) |
Tension adjusting weights | 340g |
Sample load | 3 lbf(13.4N) (Can be adjusted) |
Load adjusting weights | 150g |
Sample size | 73 x 245mm |
Power supply | 1∮ AC 220V 50/60Hz |
Dimensions ( L x W x H ) | 520 x 700 x 550mm |
Weight | 80kg |
Accessories
Standard accessories
| 1set | Load weights |
1pc | Power Line | |
Optional accessories | Optional | Wire mesh |
Optional | 50# Sand paper | |
Optional | 10# Cotton | |
Optional | Dust collector | |
Optional | GT-C01 Tensile test machine |
