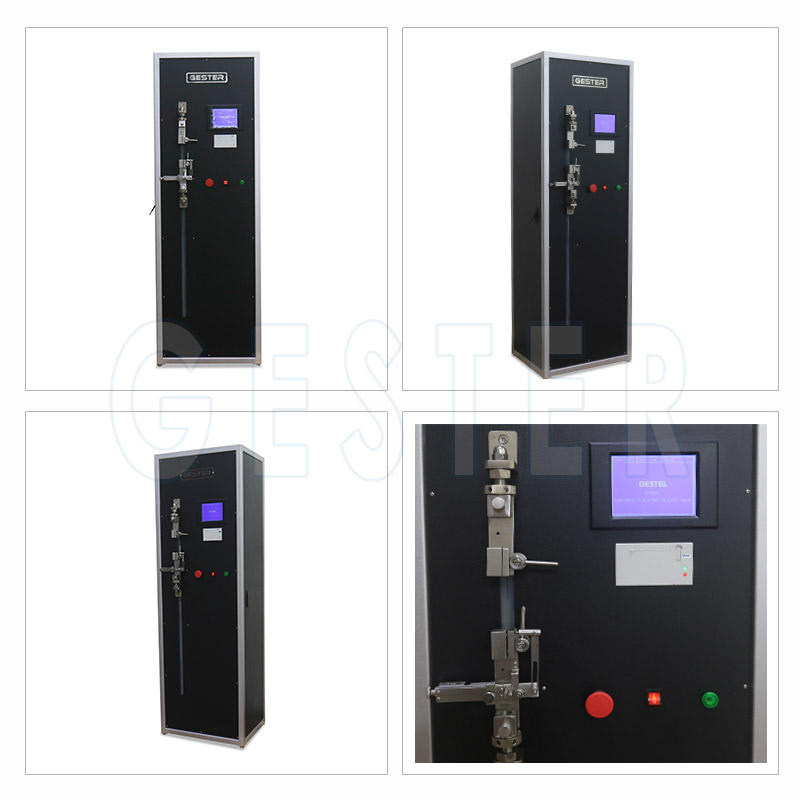

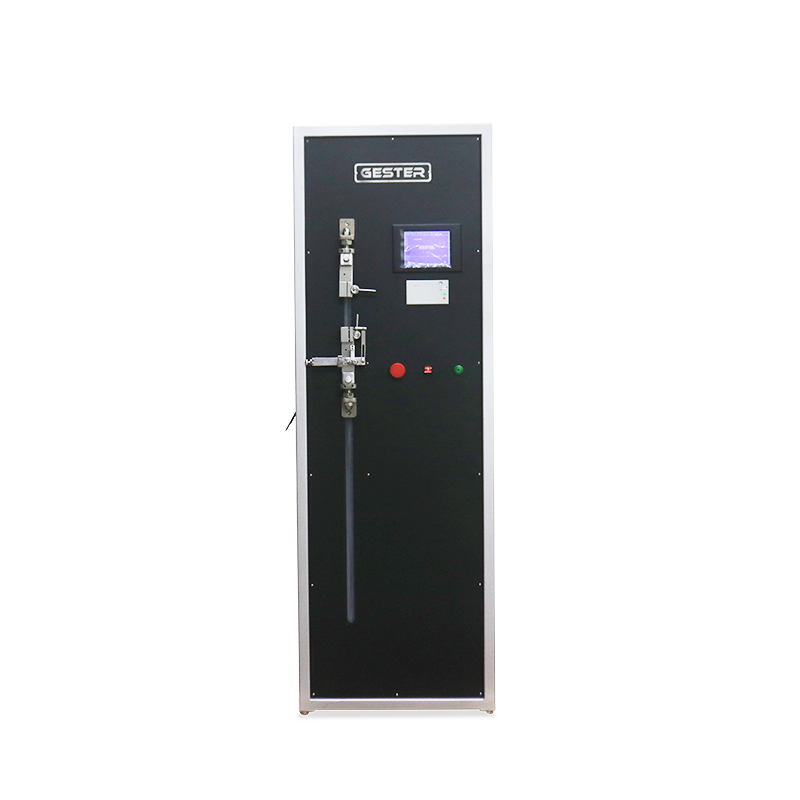

ASTM D2256 Single Yarn Strength Tester GT-A02A

这里可以自定义设置
ASTM D2256 Single Yarn Strength Tester GT-A02A
B站不支持收货地址
B站不支持库存规格
Model:
GT-A02A
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
GESTER
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障

Introduction of single yarn strength tester

Single Yarn Strength Tester determines breaking strength and elongation of single cotton, wool and other yarns up to 50 N. Yarn Strength Tester complies with yarn strength testing methods like ASTM D2256, ISO2062, GB/T14344, etc.

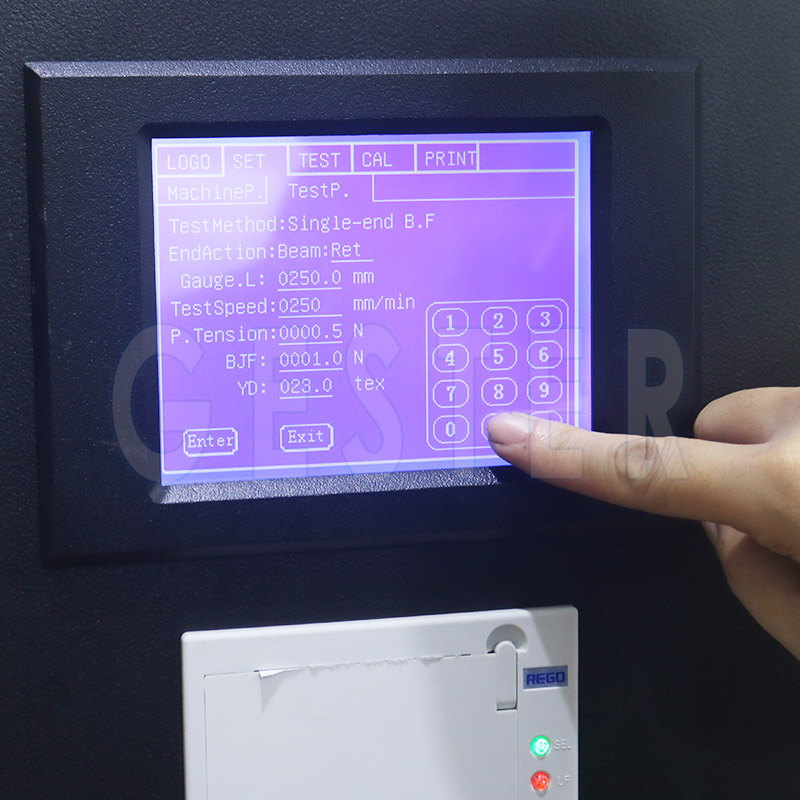

Single yarn strength tester works on the principle of constant rate of elongation with pneumatic base which is powered by micro controller; it’s a semi automatic user friendly instrument, its traverse speed and specimen length setting can be adjusted through data entry, quick lowering of upper jaw results fast testing.


A tensile test is conducted to determine the tensile strength of industrial thread and yarn. Tensile strength refers to the ability of a material to withstand force (pulling or otherwise). This strength test is usually measured in units of force per cross-sectional area.

When working with industrial thread and yarn, tensile strength typically refers to the strength and elongation properties of a particular material. A material’s resistance to breaking under tensile stress is one of the most important and highly-measured properties of materials used in applications such as wire and cable, geotextiles, tarps, web slings and more.


Test parameter such as

Number of test

Specimen length

Test speed


Applications of single yarn strength tester :

Electronic Single Yarn Strength Tester is used to test the breaking strength and elongation percentage of various cotton, wool, linen, silk, chemical fiber, core-spun single yarn, pure or blending natural or chemical fiber yarns.


Features of yarn strength testing machine:

Working pattern is CRE principle

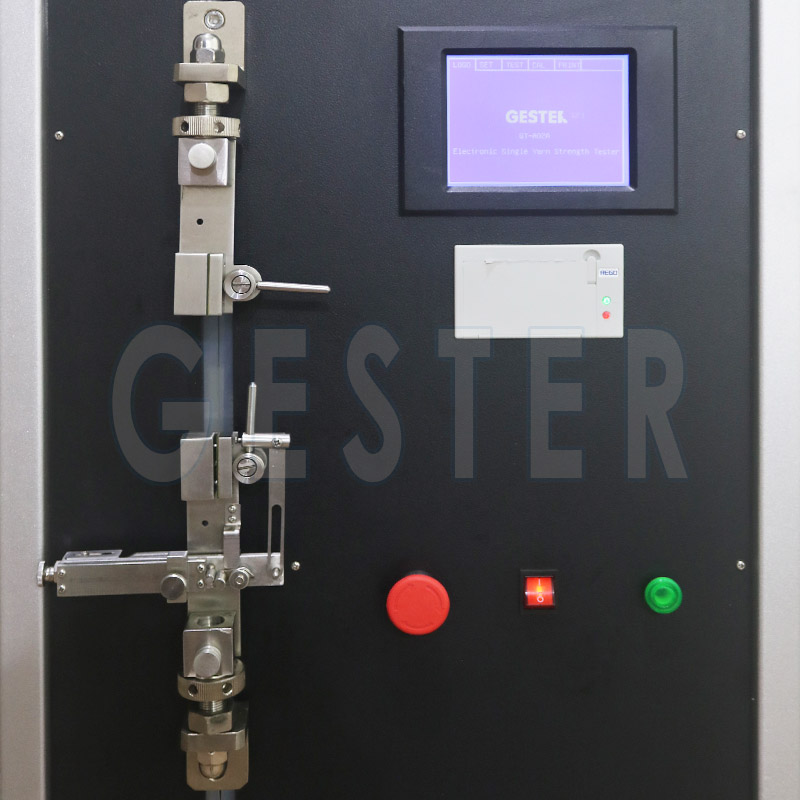

Automatic feeding of yarn, and automatic clamping for the test, fast and without damages to yarn

Fitted with Waste yarn collecting device, to make labs clean


Tensile Test: ASTM D2256

ASTM D2256 is a testing standard designed to measure the tensile properties of threads and yarns. This test method is by far the most common specification that is followed for determining the breaking strength, elongation, and energy of threads, yarns, or other single strand textiles.  This is a relatively simple tensile test whereby the material is pulled at a constant rate of speed until it breaks. The specimen can be tested in three different physical configurations: straight, knotted, or looped.ASTM D2256 is designated as Tensile Properties of Yarns by the Single-Strand Method, which can apply to any industrial yarn. ASTM D2256 standard calls for 12 inches per minute using a 10 inch sample length.


STANDARDS:

ASTM D2256

ISO 2062

GB/T 398

GB 5324

GB/T 14344

BS

JIS

AS

CAN/CGSB


这里可以自定义设置

Application



To test the breaking strength and elongation percentage of various cotton, wool, linen, silk, chemical fiber, core-spun single yarn, pure or blending natural or chemical fiber yarns.





Feature

  1. 1.Dynamic Data Sampling Frequency is More than 800HZ, ease to catch peak value, most precisely indicate property of textile material.
  2. 2.Clamp distance can be set freely, and positioned automatically according to the setting system.
  3. 3.Support online operation and with specialist software analysis system for data analysis and backup.
  4. 4.Domestic first creation sample test and data-processing software with multithreading.
  5. 5.Software can online analyze data and show the statistic value of breaking strength, elongation rate, yield strength, initial modulus, and plastic deformation.

Key Specification

Model

GT-A02A-1

GT-A02A-2

GT-A02A-3

GT-A02A-4

Load range

0-3000cN

0-5000cN

0-100N

0-300N

Working pattern

Constant rate of extension (CRE principle), computer control, English LCD display, report printing.

Testing range

1%-100% of the full range

Testing accuracy

≤0.2%F·S

Test speed

501000mm/min

Stroke space

800mm

Clamp distance

50500mmdigital setting

Pr-tension

0-150cN tension steelyard

Power supply

Ac220V±10%  50Hz  0.25Kw

Dimensions

520×400×1600mm

Weight

60kg

Standards

GB/T14344, GB/T3916,  ISO2062,  ASTM D2256

Standard accessories

1PC   Power line
