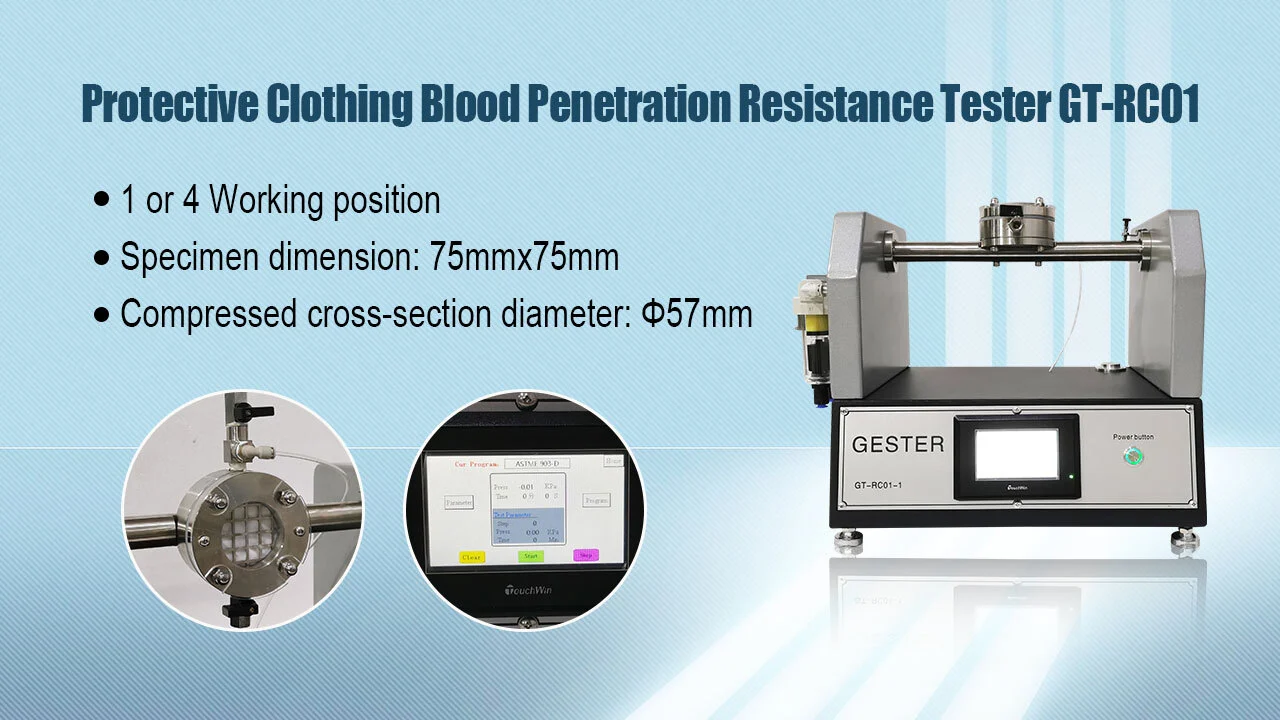

Blood Penetration Resistance Tester For Protective Clothing GT-RC01
Application
This machine is used to determine the resistance of a protective clothing material to penetration by synthetic blood.
Standards
ASTM F903, ASTM F1670, ASTM F1671/F1671M , YY/T0700, GB19082, ISO16603, ISO 16604, IS 16545, IS 16546
Feature
- 1.With one or four working position, can test one or four specimen simultaneously.
- 2.Single-chip microcomputer automatic control, automatic timing, automatic alarming once test finished.
- 3.Protective clothing blood penetration tester Equip with mechanical pressure meter, easy for checking.
- 4.With HMI configuration, real-time display of pressurized pressure by touch screen.
- 5.Each working position is equipped with independent pressure monitored display.
- 6.Adopt with programmable throttle valve for pressure apply, to make sure the rate of pressurized is not excess 3.5kPa/s.
7.Protective Clothing Blood Penetration Resistance Tester Using 13.6N.m ratchet wrench for specimen installation, torque force is controllable.
Product Parameters
Model | GT-RC01-1 | GT-RC01-4 |
Working position | 1 | 4 |
Specimen dimension | 75mmx75mm Compressed cross-section diameter: Φ57mm | |
Retardation mesh | 304 Stainless Steel Open space ≥50% Curve ≤5mm at 14kPa | |
Air supply | Compression air | |
Fixture torque | 13.6N·m | |
Air supply | ≥0.4kg/cm2 | |
Standard accessory | GT-SDH-20 Digital Torque Wrench 1set | |
