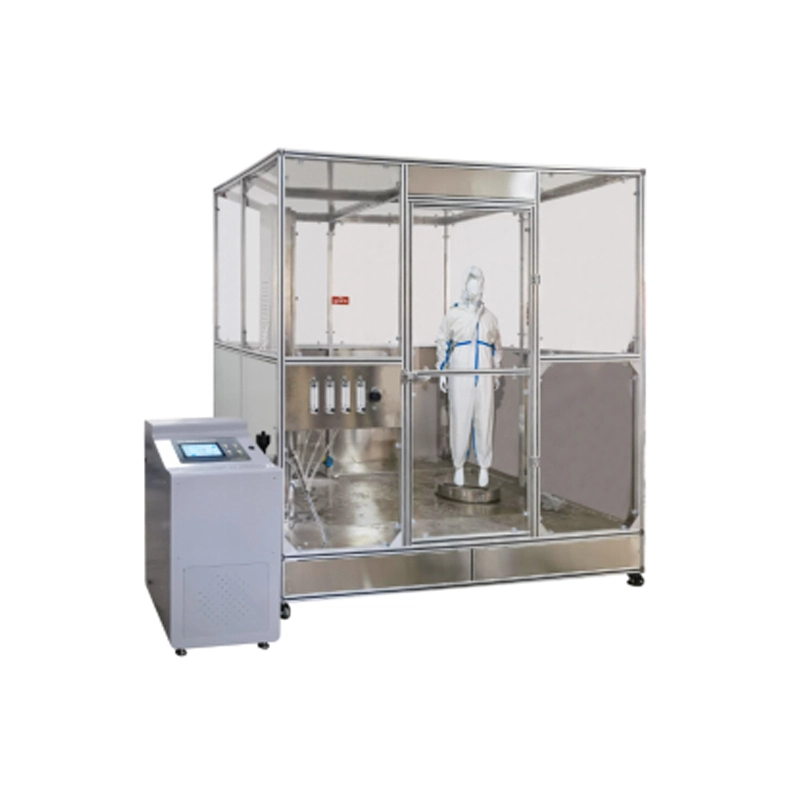

Spray Test Splash Liquid Penetration Tester GT-RC03
Application
This Splash Liquid Penetration Tester is designed to evaluate how well materials resist liquid spray penetration, including acids and various chemicals.
Features
1. Equipped with a specially designed dummy model for accurate testing.
2. The turntable is made of waterproof materials and maintains a stable, constant rotation speed.
3. The water supply system includes a pressure gauge and a flow adjustment device.
4. Spraying duration can be preset and automatically timed.
5. A fully enclosed protective system surrounds the tester, ensuring laboratory cleanliness and providing effective safety protection for operators.
Standards
ISO 17491-4, GB 24540-2009,GB 24539-2021
Key Specification
Model | GT-RC03 | |
Rotation speed of turn table | 1rad/min | |
Turn table | Φ60cm | |
Spacing between spray nozzles | 450mm/600mm (adjustable) | |
Spray angle of nozzle | 75° | |
Inlet pressure of nozzle | 300kPa | |
Nozzle flow rate | (1.14±0.1)L/min | |
Time setting range | 0～99.99s; Resolution: 0.01s | |
Test chamber | Dimensions(L*W*H) | 2600mm*2400mm*2350mm |
| Weights | 390KG |
Control box | Dimensions(L*W*H) | 460mm*460mm*950mm |
