Applicable standard:
ASTM D1646-2017, GB/T 1233-2008, GB/T 1232.1-2016, ISO 289-2-2016, ISO 289-1-2015
Introduction:

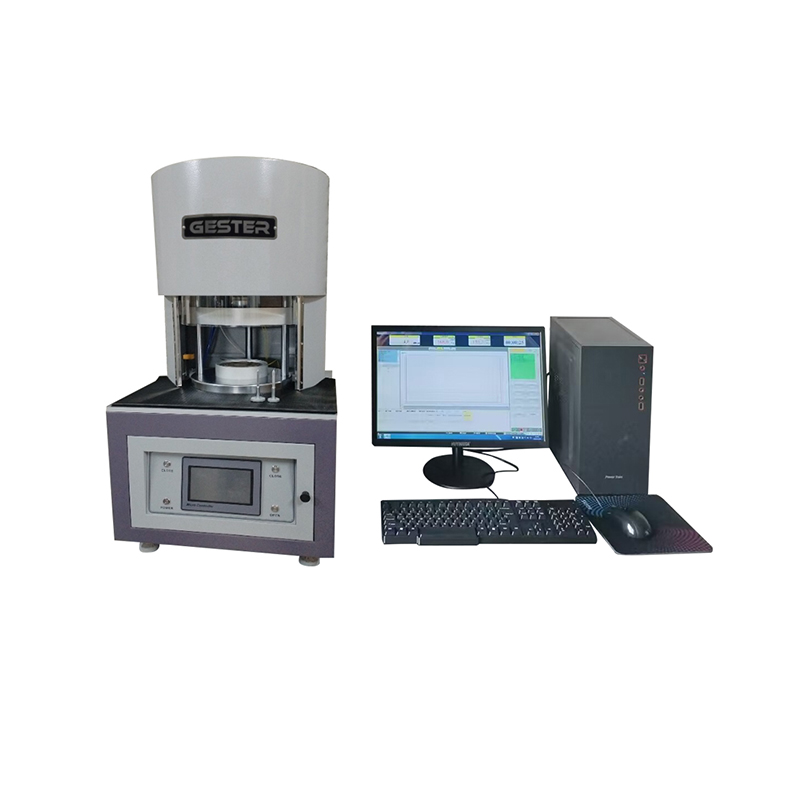

The Mooney viscometer is an essential instrument for determining the viscosity and scorch of raw rubber or compounded rubber.
It is specifically designed for maintaining quality, optimizing processes, and facilitating research in rubber manufacturing.
Features:
The Mooney viscosity plays an important role by offering insights into the processibility, molecular weight, and distribution range in rubber manufacturing. It helps in quality control, process improvement, and optimizing materials properties for research and development.
WIDE APPLICABILITY ACROSS DIVERSE INDUSTRIES: Suitable for diverse industries such as, rubber manufacturing, footwear, construction, automotive, household items, transportation, and mining.
Applicable standard:
ASTM D1646-2017, GB/T 1233-2008, GB/T 1232.1-2016, ISO 289-2-2016, ISO 289-1-2015
Key Specification
Model |
GT-KR03 |
Test mode |
Mooney viscosity, Mooney scorch, stress relaxation |
Temp. control |
Computer operation, PID.SSR control |
Temp. range |
Ambient temp. ~200℃ |
Temp. display resolution |
0.1℃ |
Temp. control stability |
±0.1℃ |
Temp. accuracy |
≤±0.5℃ |
Temp. recovery time |
≤45 sec |
Heating time |
RT~100℃ < 6 min |
Mooney range |
250 MU |
Torque display resolution |
0.001 MU |
Rotor speed |
2.00 rpm |
Rotor speed accuracy |
±0.01 rpm |
Software |
English software |
Communication interface |
RS232 |
Motor |
Servo Motor |
Compressed air |
4kg/cm2(4MPa) (prepared by customer) |
Power |
1∮ AC 220V 50/60Hz 2kW |
Dimension (W×D×H) |
70 cm × 85 cm × 130 cm |
