Digital Lastometer Leather Cracking Tester GT-KC37A

这里可以自定义设置

B站不支持收货地址

B站不支持库存规格

Model:: GT-KC37A

MOQ:: 1 Piece

Place of Origin:: Quanzhou,China(Mainland)

Brand: GESTER

B站不支持优惠卷

Inquire Online
Download

Cancel

B站不支持产品保障

该产品后台详情无内容

GT-KC37A

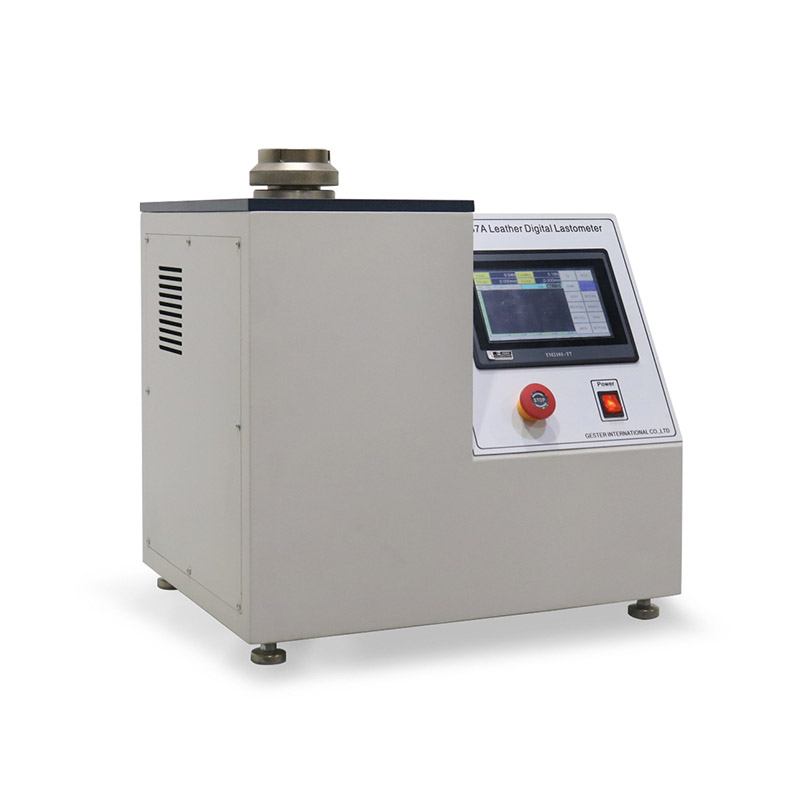

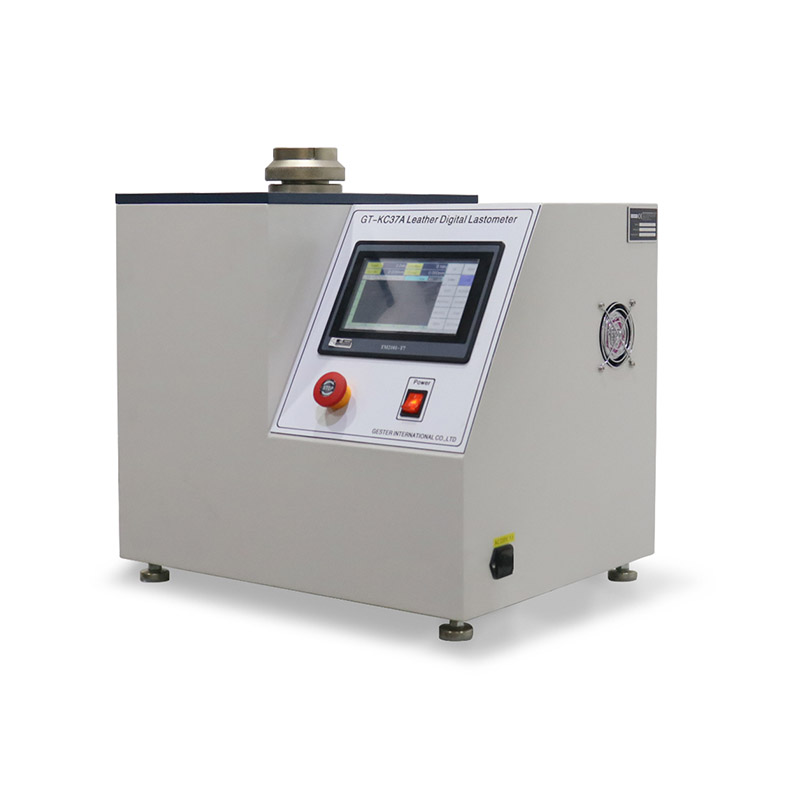

Digital Lastometer Leather Cracking Tester Description

Application
To determine the anti-cracking index for upper, leather facing and all kinds of thin leather. Fixed the clamp frame round the sample, jacked up the ball to the inside of leather with 12mm/min. When leather is cracking, the value of increase height is the crack value.

Standards
BS 3144 section 8, ISO 3379, ISO17693, DIN 53325,
GB/T3903.38, QB 3812.7, QB 2712, SATRA TM166, SATRA TM24

Shoes Upper Leather

Thin Leather Materials

Key Specification

Max. Load	1000N
Control mode	Touch screen controlled
Clamp diameter	25mm
Bursting ball diameter	6.25mm
Speed	12mm/min
Sample size	Diameter: 44.5mm
Power Supply	1∮AC 220V 50/60HZ
Dimensions	54 x 47 x 52cm
Weight	42kg

Accessories

Standards accessories

Power line

Optional accessories

GT-KD20 Pneumatic Sample Cutting Machine

(Cutting die of diameter 44.5mm)
