Drop Dart Impact Tester for Plastics Film GT-N75
Application
This Drop Dart Impact Tester for Plastics Film is designed to assess the impact mass and energy of plastic films or sheets with a thickness under 1mm. It measures the effects when a free-falling dart strikes the material from a specified height, determining the point at which 50% of the samples experience damage.
Standards
ISO 7765-1-1988, ASTM D1709, JIS K7124-1
GB/T 38082-2019, GB/T 9639.1-2008
Key Specification
|
Model |
GT-N75 |
|
Control Mode |

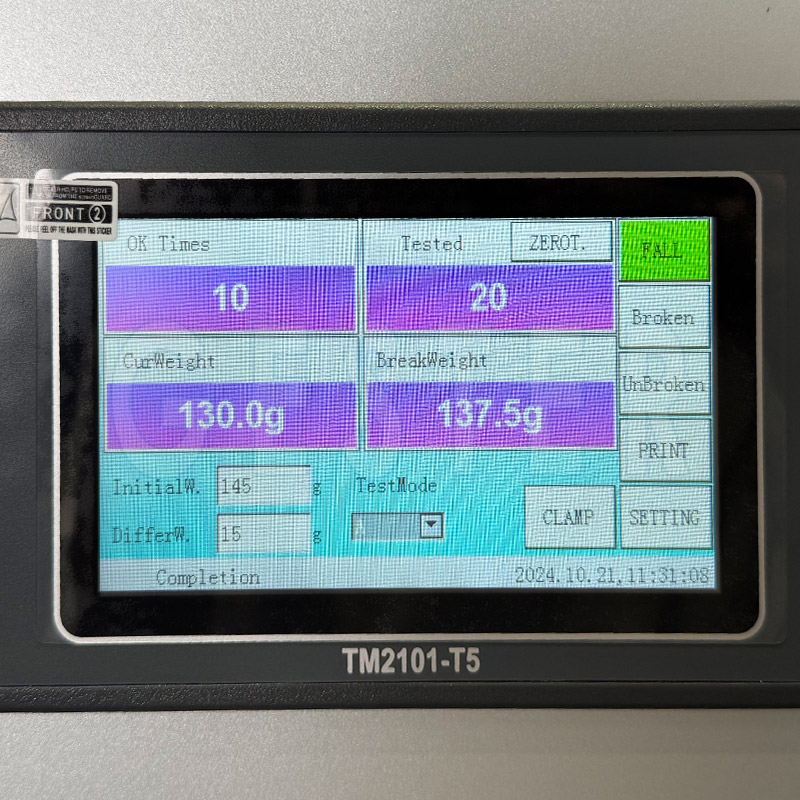

Touch screen controlled |
|
Testing Method |
Method A and B |
|
Testing Range |
Method A: 50-2000g Method B: 300-2000g |
|
Drop Height |
Method A: 660mm Method B: 1500 mm |
|
Testing Error |
0.1g (0.1J) |
|
Sample Size |
>150mm×150mm |
|

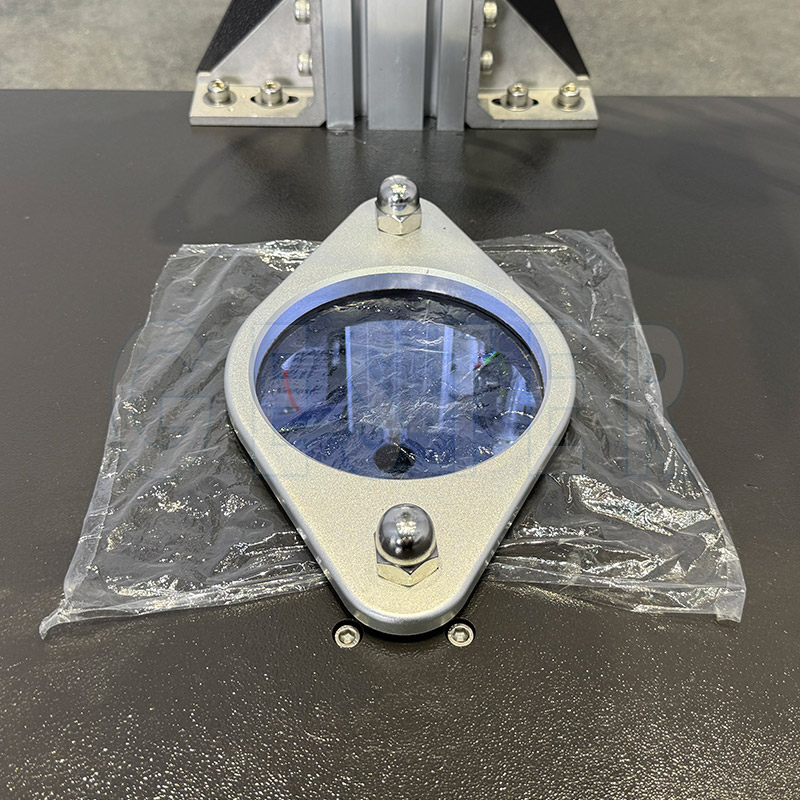

Method of Grip |
Pneumatic |
|
Compression Air |
0.6MPa (Air tube connector: 8mm) |
|
Dimension |
695mm×555mm×1955mm(L×W×H) |
|
Weight(approx.) |
70 kg |
|
Power |
AC 220V 50Hz |
