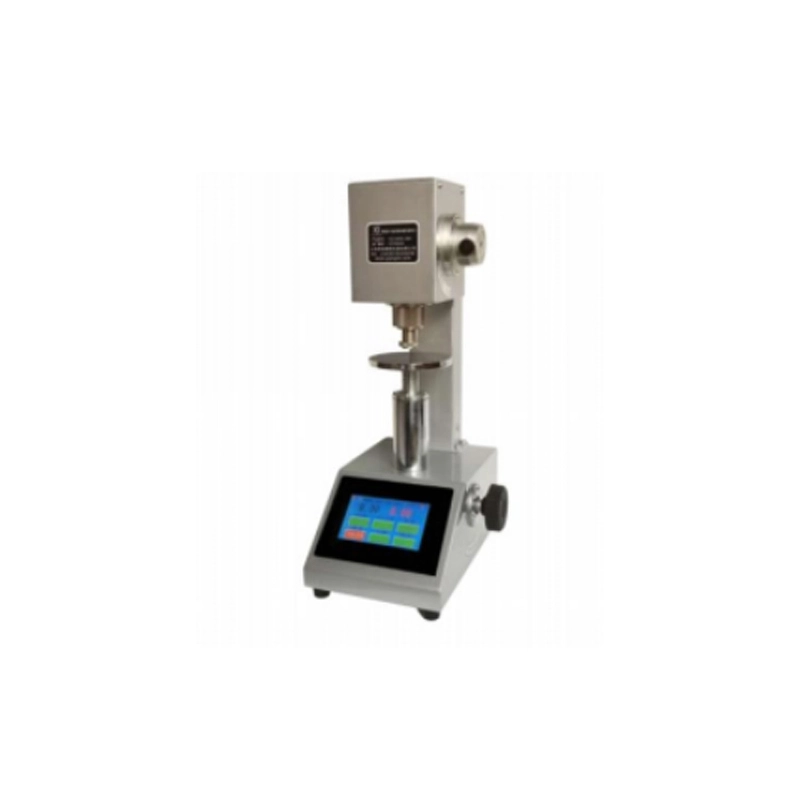

IRHD Rubber Hardness Durometer GT-KD24
IRHD Rubber Hardness Durometer GT-KD24
Application Product Presentation
This IRHD Rubber Hardness Durometer GT-KD24 determines the international IRHD hardness values of rubber and similar rubber materials test pieces and specimens. Its measurement capability spans 10 to 100 IRHD.
Feature
1. Touch screen control
2. High-precision sensing system with color touchscreen LCD display.
3. Three hardness testing modes (L, N, H) via interchangeable indenters and test feet.
4. Hardness measurement range 10~100IRHD
5. (L, N ,H) Three methods combined in one.
IRHD Rubber Hardness Durometer Key Specification
|
Test |
Diameter (mm) |
Steel ball force |
Force on the compression foot (N) |
||
|
|
|
Contact force (N) |
Press-in force (N) |
Total Force (N) |
|
|
Method N (Regular test) |
Ball 2.5±0.01 Pressure Feet 20±1 Hole 6±1 |
0.30±0.02 |
5.4±0.01 |
5.7±0.03 |
8.3±1.5 |
|
Method H (High hardness) |
Ball 1.00±0.01 Pressure Feet 20±1 Hole 6±1 |
0.30±0.02 |
5.4±0.01 |
5.7±0.03 |
8.3±1.5 |
|
Method L (Low hardness) |
Ball 5.00±0.01 Pressure Feet 22±1 Hole 10±1 |
0.30±0.02 |
5.4±0.01 |
5.7±0.03 |
8.3±1.5 |
Standards Accessories
|
Test head Type L |
1pc |
Round test bench |
1pc |
|
Test head Type N |
1pc |
Micro Printer |
1pc |
|
Test head Type H |
1pc |
Power line
|
1pcs |
|
Test Feet |
2pcs |
