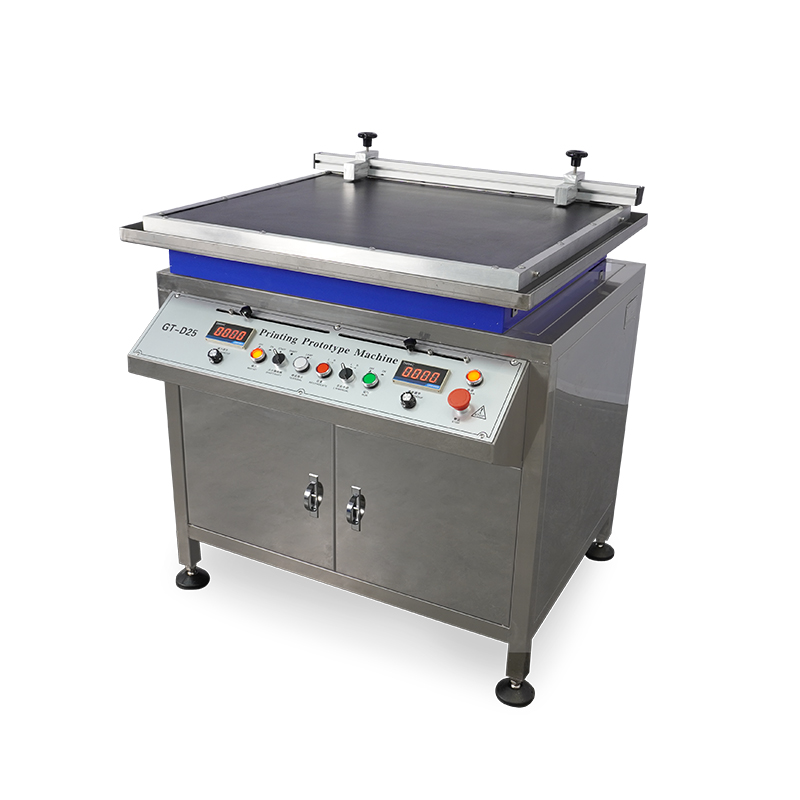

Laboratory Printing Dyeing Prototype Machine GT-D25
Application
This laboratory printing and dyeing prototype machine is a versatile equipment designed for textile laboratories. It is suitable for sample printing and color matching processes on natural fibers, synthetic fibers, and blended fabrics.
Key Features:
1. Electromagnetic-driven roller Scraping system
2. Adjustable scraping pressure
3. Variable scraping speed through frequency conversion control
4. Selectable single-pass or continuous scraping modes
5. Customizable scraping distance setting
Laboratory Printing Prototype Machine GT-D25 Key Specification
|
Model |
GT-D25 |
|
Magnetic bar diameter |
Ф10 mm and Ф16mm |
|
Magnetic bar length |
500mm |
|
Optional magnetic bar size |
Ф20mm, Ф25mm |
|
Magnetic bar stroke |
100~500 mm (adjustable) |
|
Area of table-board (L x W) |
810mm×710mm |
|
Size of printing frame (L x W) |
640 x 480mm |
|
Maximum of Printing (L x W) |
500mm×500mm |
|
Power Supply |
1∮AC 220V 50/60HZ 1kw |
|
Dimensions (L x W x H) |
900mm×870mm×1005mm |
|
Weight |
150kg |
Accessories
|
Standard accessories |
1PC |
640×480 Strip Printing Frame |
|
Standard accessories |
1PC |
Ф10 mm Magnetic Bars |
|
Standard accessories |
1PC |
Ф16mm Magnetic Bars |
|
Standard accessories |
1PC |
Power Line |
|
Optional accessories |
|
Other Standard Printing Frame |
|
Other Dia. Magnetic Bar |
