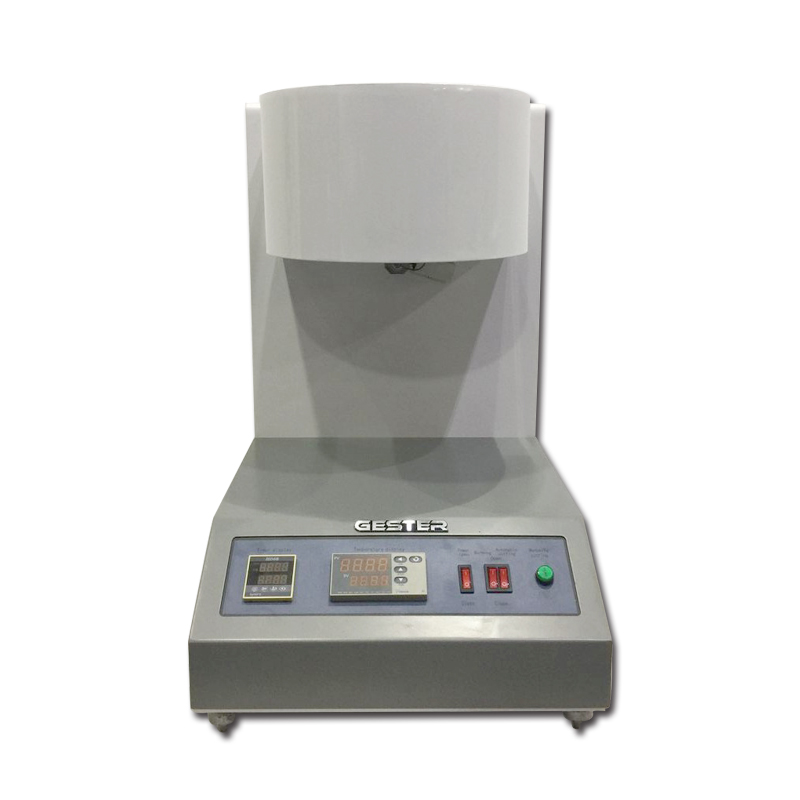

Melt Flow Index Machine Key Specification
Model |
GT-KC67 |
Testing range |
0.1-400.00g/10min (MFR)
|
Temp. range |
Room temp. -450℃ |
Temp. Control precision |
±0.2℃ |
Timing precision |
1S or 0.01S, can be adjusted |
Timing range |
1-9999S or 0.01-99.99S, can be adjusted |
Load |
(GB/ISO)0.325,1.2,2.16,3.8,5,10,12.5,21.6 (KG) |
Cut material method |
Manual, time control |
The inner diameter of the barrel |
9.550mm±0.025mm |
Length of charging barrel |
160mm |
Die |
Tungsten carbide material length: 8.000mm±0.025mm inner diameter: 2.095mm±0.005mm |
Power Supply |
1∮AC 220V 50/60HZ |
Dimensions( L x W x H ) |
400mm×500mm×640mm |
Weight |
60Kg |
