Paper Internal Plybond Tester GT-N25
Applications
This Paper Internal Plybond Tester GT-N25 is designed to measure the internal bond strength of paper and cardboard (i.e., the bonding strength between paper layers or within the paper itself). It is also suitable for testing the internal bond strength of paper composite materials, film composite materials, and other sheet-like materials. Examples include bobbin fiber paper, whiteboard, brown paper, linerboard, and aluminum foil composite packaging materials.
Working Principle

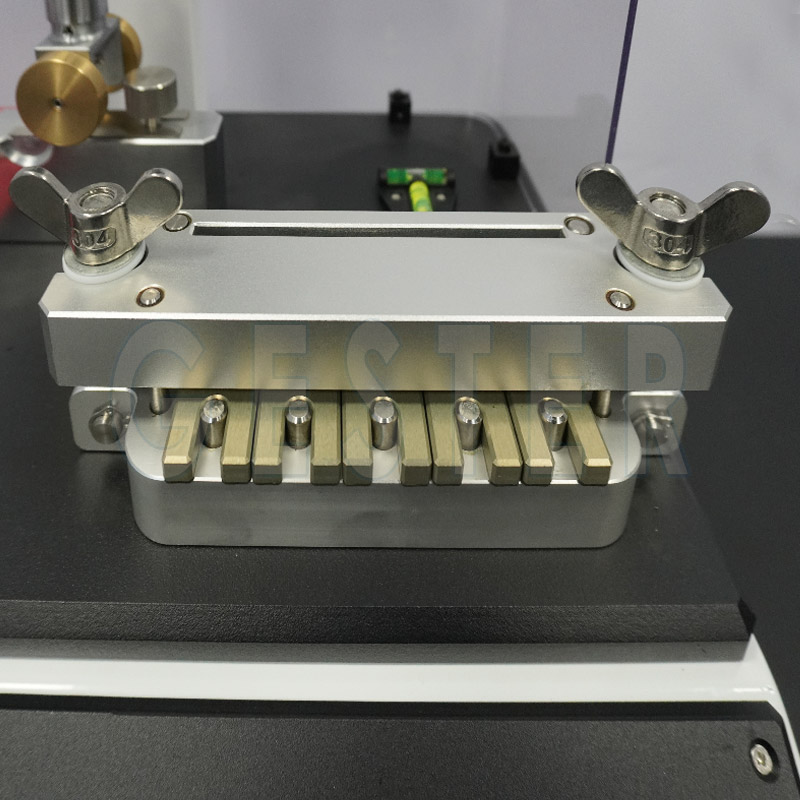

A sandwich structure is created by combining double-sided tape + sample + double-sided tape, which is then pressed between a metal anvil and an aluminum block. The inner surface of the upper part of the aluminum block is struck by a pendulum, causing the block to flip and rupture the sample in the Z direction. The energy absorbed by the sample during the destruction process is calculated by measuring the pendulum's swing position, expressed in units of J/m².
Features
1. Equipped with a touchscreen display that supports both Chinese and English language options.
2. Automated pressure adjustment for adhesive sample pressing.
3. Capable of performing statistical analysis on test data.
4. High rigidity and stable structure, minimizing energy loss due to vibrations during testing.
5. Reliable sample clamping and positioning system, reducing errors from sample sampling.
6. Optional computer connectivity for automatic real-time test data curve plotting.
Standards
GB/T 26203, ASTM T569 pm-00, DIN ISO 16260, TAPPI-UM403, TAPPI T833pm-94, TAPPI T569pm-00
Key Specification
Model | GT-N25 |
Specimen size | 25.4mm×25.4mm |
Sampling number | 25.4×128mm, 5pcs / time |
Specimen thickness | (0.1~5) mm |
Impact angle | 90° |
Release way | Automatic release |
Testing range | 0~100)J/M2 (A range: (0~500)J/M2, B range: (500~1000)J/M2) |
Indication error | A range: ±1J/M2 B range: ±2J/M2 |
Accuracy | 0.001J/M2 |
Unit | J/M2, lbf/in2 interchange |
Resolution | 0.001lbf/in2, 5000 pulse high precision encoder |
Human-computer interface | 7 inch touch screen control |
Printing | Modular integrated thermal printer |
Dimension | 500m×400mm×650mm |
Weight | ≈70KG |
Accessories
Standard accessories
| 1roll | Double-sided tape |
1roll | Thermal paper | |
Optional accessories
| / | Sampler for inter layer bond |
/ | Computer software | |
/ | Telecommunication cable |
