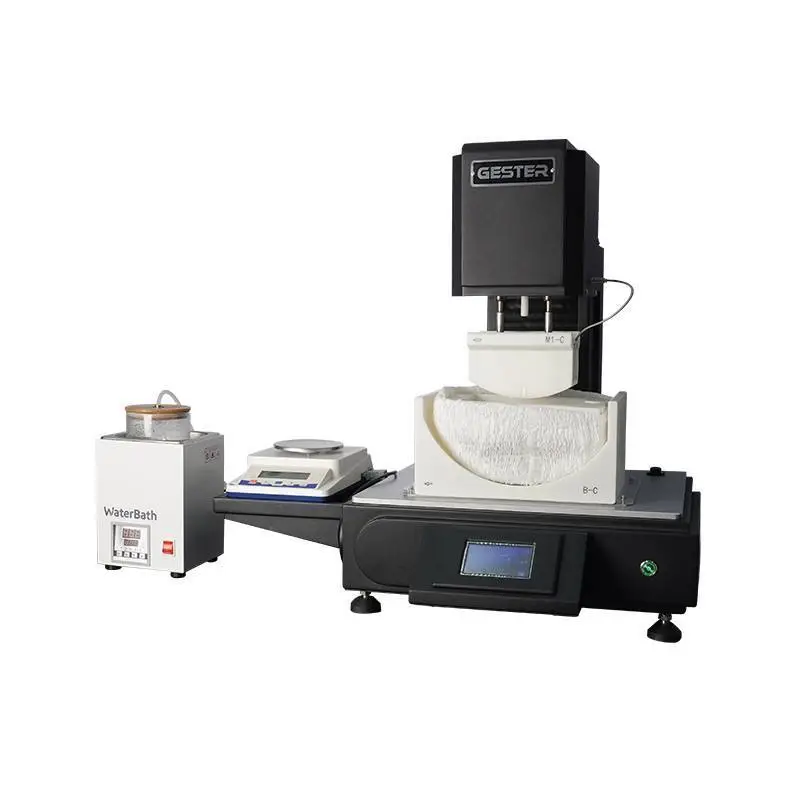

Permeability Tester for Diapers GT-CN15
GT-CN15
Permeability Tester for Diapers
Application
The diaper permeability tester is used to determine the absorption speed, re-permeability and permeability of diapers and other products
Standards
GB/T 28004.1-2021 Diapers Part 1: Infant Diapers
GB/T 28004.2-2021 Diapers Part 2: Adult Diapers
F
Features
1. It can automatically complete the functions of liquid addition, constant pressure pressurization, timing and other functions in the test process, and measure the absorption performance indicators such as pressure absorption rate, re-osmosis and leakage of the sample.
2. Touch Screen Control, Chinese & English Menu, Man-Machine Conversation Mode.
3. Built-in thermal printer, convenient to quickly print test results.
4. Professional computer analysis software can realize two-wayl; ip operation with mputer.
5. High-precision peristaltic pump to ensure the accuracy of penetrating liquid volume.
6. The built-in water tank is made of 316L stainless steel, durable and rust free; Automatic heating, constant temperature.
7. Automatic liquid adding and testing, no need to add liquid manually.
8. The electrode is made of special materials, with good induction and automatic positioning of the electrode.
9. Using stepping motor and high-precision ball screw drive, the stroke control is accurate.
10. Automatic data processing, can get test average, standard deviation, coefficient of variation.
11. Equipped with high precision balance, can directly calculate the leakage and rewet after weighing.
12. Stainless steel weights are used to provide constant pressure, which effectively avoids pressure changes after the specimen absorbs water.
13. Equipped with buzzer coming with reminder function.
Key Specification
|
Model |
GT-CN15A |
GT-CN15B |
|||||||
|
Application |
Infant Diapers |
Adult Diapers |
|||||||
|
Accuracy of counting |
0.01s |
||||||||
|
Liquid adding device |
Liquid adding amount accuracy: ±2mL, Liquid adding speed: 200~800mL/min |
||||||||
|
Capacity of water-bath (2L)
|
Infant diaper pants: (40±2)ml/(60±2)ml/(80±2)ml |
Adult diaper pants: (100±2)ml/(150±2)ml |
|||||||
|
Infant diapers: (30±2)ml/(40±2)ml/(50±2)ml |
Adult diapers: (70±2)ml/(100±2)ml |
||||||||
|
Adding liquid flow rate |
(480±10)ml/min |
(720±15)ml/min |
|||||||
|
Standard liquid module
|
W |
(80±1) mm (M1) |
(85±1) mm (M2) |
(95±1) mm (M3) |
W |
(70±1) mm (M1) |
(95±1) mm (M2) |
/ |
|
|
L |
(100±1) mm (M1) |
(108±1) mm (M2) |
(125±1) mm (M3) |
L |
(170±) mm (M1) |
(170±1) mm (M2) |
/ |
||
|
Standard pressure module
|
W |
(80±1) mm (Y1) |
(85±1) mm (Y2) |
(95±1) mm (Y3) |
W |
(70±) mm (Y1) |
(95±1) mm (Y2) |
/ |
|
|
L |
(100±1) mm (Y1) |
(108±1) mm (Y2) |
(125±1) mm (Y3) |
L |
(170±) mm (Y1) |
(170±) mm (Y2) |
/ |
||
|
Sample base
|
U Type Sample Base |
Arc Type Sample Base |
|||||||
|
W |
(122±1) mm (B1) |
(135±1) mm (B2) |
(152±1) mm (B3) |
319mm×200mm |
|||||
|
L |
(125±1)mm (B1) |
(136±1)mm (B2) |
(154±1)mm (B3) |
|
|||||
|
Balance accuracy |
Range: 300g, 0.01g |
||||||||
|
Dimension(W*L*H) |
820x575x750mm |
||||||||
|
Weight |
62KG |
||||||||
|
Power |
AC 220V 50Hz 100W |
||||||||
