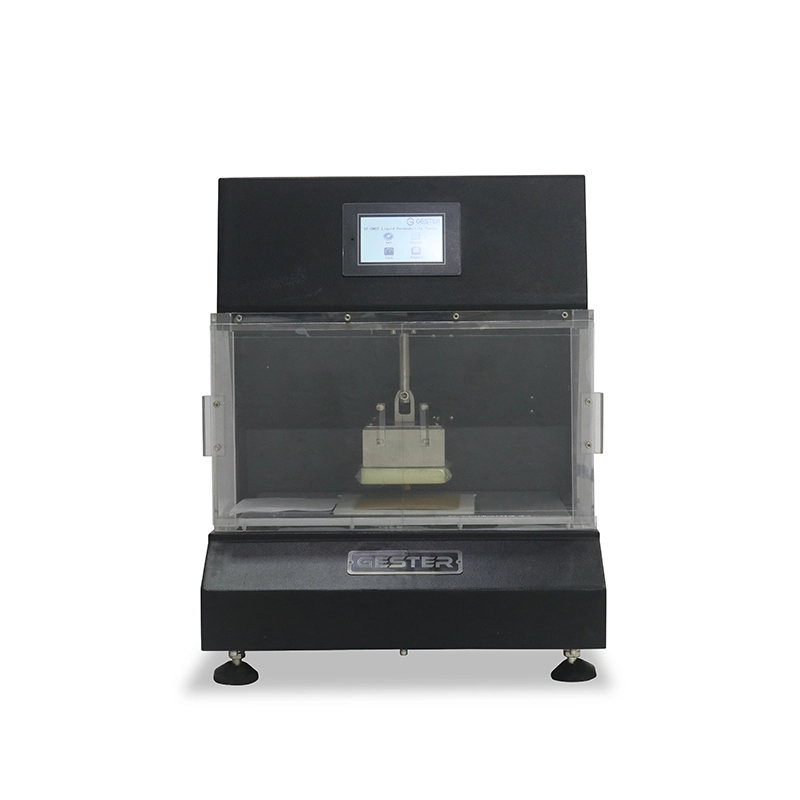

Liquid Permeability Testing Machine GT-CN07
Liquid Permeability Testing Machine GT-CN07
Application
The Liquid Permeability Tester is designed to measure the rewet volume of sanitary materials.
Principle
The test involves placing the sample material on a standard absorption pad (comprising 10 layers of filter paper) and conducting three liquid penetration tests using a specified volume of simulated urine. Following the third penetration, a simulated baby weight (SBW) is placed on the sample and absorption pad to ensure even liquid distribution.
A pre-weighed blotter paper is then placed on the tested sample, and the SBW is repositioned on top.
The mass of liquid absorbed by the blotter is defined as the amount of reverse moisture.
Features
1. Equipped with a color touch screen for intuitive operation and clear display.
2. The standardized simulated baby load allows adjustable placement time and movement speed.
3. Powered by a 32-bit Cortex-M3 microprocessor for fast data processing and stable performance.
4. Features a speed-adjustable lifting mechanism to accurately simulate baby load conditions.
Standards
GB/T 24218.14, ISO 9073-14, NWSP 70.7
Liquid Permeability Testing Machine Key Specification
|
Suction Pad Size |
100mm×100mm×10 layers |
|
Suction Paper |
Size 125mm×125mm, mass per unit area (90±4)g/m2, air resistance (1.9±0.3kPa) |
|
Sample Size |
125mm×125mm |
|
Simulate Baby Loading Time |
0-10min |
|
Load Movement Rate |
5cm/(5±1)s |
|
Timer Accuracy |
0.1s |
|
Power Supply |
AC220V±10% |
