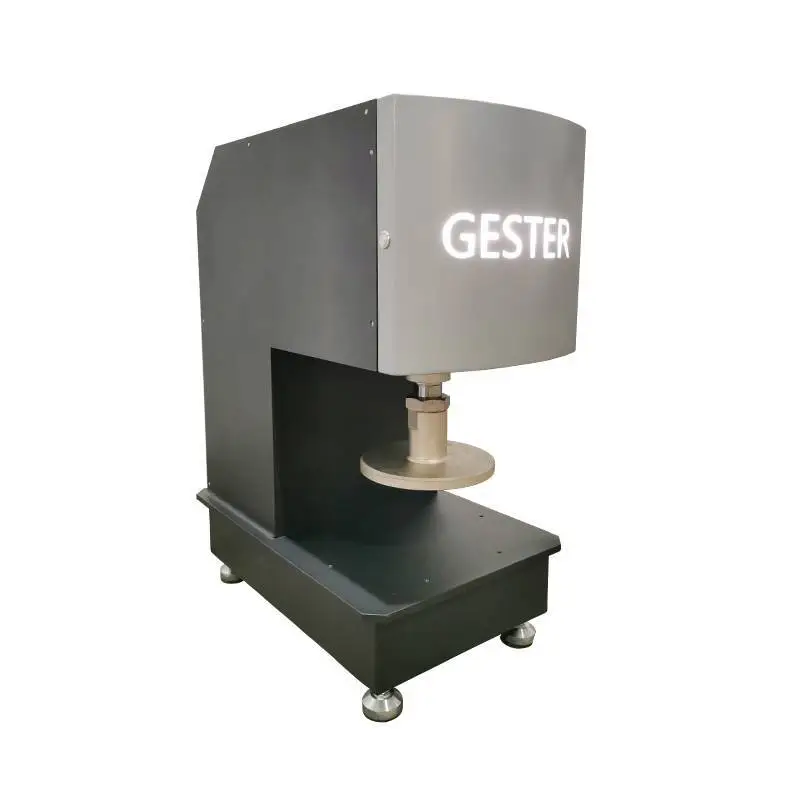

Pneumatic Sample Cutting Press GT-C48-2
Pneumatic Sample Cutting Press GT-C48-2
Application
This Pneumatic Sample Cutting Press is a novel desktop compression device featuring a 125 mm gas cylinder and a cutting thickness of 10 mm. Operating at 100 psi, it generates a pressure of 2000 kg and incorporates a dual-bond safety mechanism for secure operation. Can be requested to provide special shape die. Laboratory standards require the use of air compressor.
Standards
ASTM D3776,D2646, D4966,BS 3424/2471, BS EN 12127, EN 344-1
M&S P65/65A, ISO 20344, ISO 5470-2, ISO 3801, AS/NZS 2210.2 , GB/T 20991,SATRA TM31
Control System
|
Control mode |
Pneumatic control |
Pneumatic Sample Cutting Press Key Specification
|
Model |
GT-C48-2 |
|
Max. cutting pressure |
2000Kg |
|
Diameter of platen |
30cm |
|
Air pressure |
4kg/cm2 |
|
Power supply |
AC220V±10% 50/60Hz |
Accessories
|
Standard accessories
|
1pc |
Round cutting die 100cm² |
|
1pc |
Power Line |
|
|
Optional accessories
|
Optional |
Round cutting die: Φ38mm |
|
Optional |
Round cutting die: Φ44mm |
|
|
Optional |
Round cutting die: Φ90mm |
|
|
Optional |
Round cutting die: Φ140mm |
|
|
Optional |
Round cutting die: Φ165mm |
|
|
Optional |
Rectangle cutting die:4×10CM |
|
|
Optional |
Rectangle cutting die:5×15CM |
|
|
Optional |
Can customize special cutting die |
