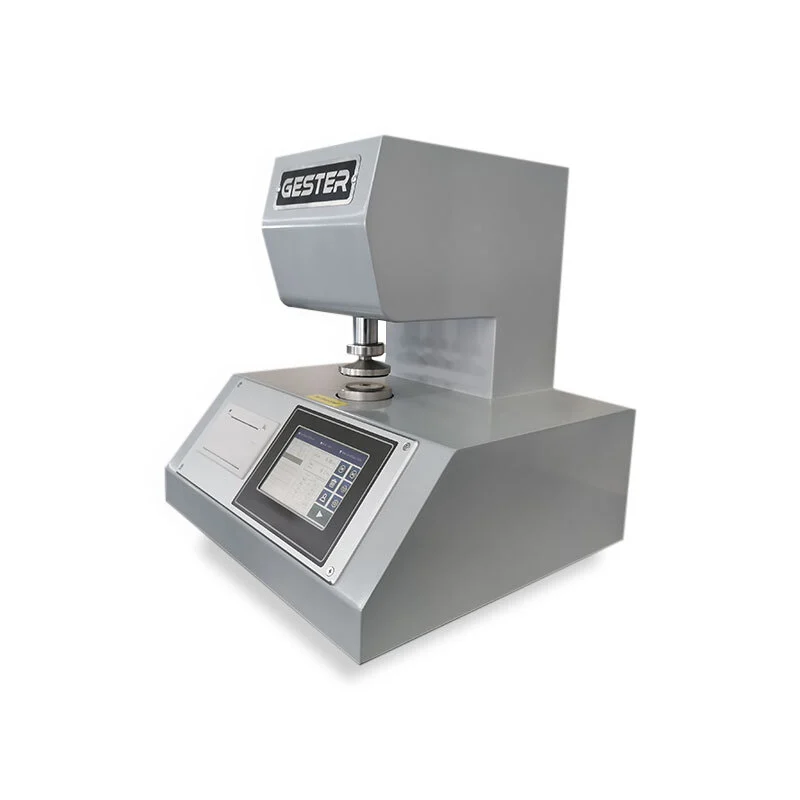

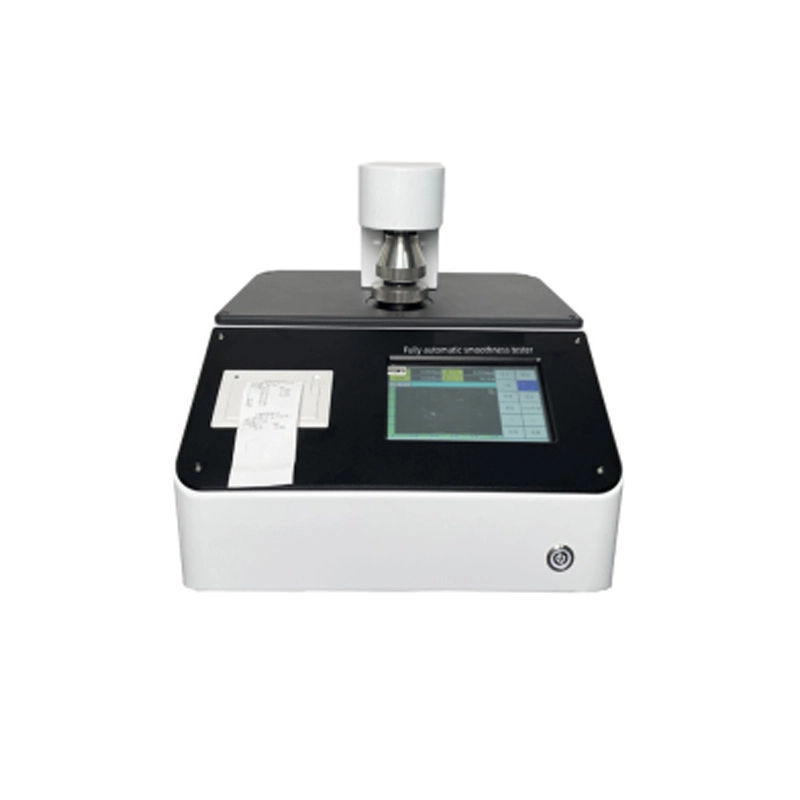

Smoothness Tester for Paper GT-N06
Product Description
Application
The Smoothness Tester is used to detect paper and paperboard surface smoothness of a special instrument, is based on the international general Buick BEKK smoothing instrument working principle of the latest design and development of an intelligent paper and paperboard smoothness performance testing instrument.
Automatic Smoothness Tester is suitable for paper making enterprises, printing enterprises, quality supervision bureau and scientific research institutions. It is not applicable for measuring high ventilation paper/cardboard with a thickness greater than 0.5mm, as a large air passing through the test surface will affect the test results.
Bekk Smoothness Tester Standards
ISO 5627, GB/T 456-2002
Smoothness Tester for Paper Feature
1. Micro computer processing system, touch screen control and display.
2. The fully automatic one-step test, increase the pressure and resets automatically.
3. Micro printer output, data can output conveniently and quickly.
4. RS232 Communication interface, to connected with microcomputer software(optional).
5. When vacuum pressure is 50.66kPa, for large volume within 60min or small volume within 6min, the vacuum level should be less than 3kPa.
6. Test Level Selection: The vacuum levels and container volume changes for each one as follows:
Level I: Using a large vacuum container (380 mL), the vacuum level changes, 50.66kpa～48.00kpa.
Level II: Using a small vacuum container (38 mL), the vacuum level changes, 50.66kpa～48.00kpa.
Level III: Using a large vacuum container (380 mL), the vacuum level changes, 50.66kpa～29.33kpa.
Product Specifications
Our specialists can help you find the perfect Smoothness Tester GT-S06 for you.
| Model | GT-N06 |
| Measuring Range | (0~9999)S |
| Thickness of Test paper | ≤5mm |
| Test Level | (1-99999)S,(1-15)S, (15-300)S, (300-99999)S ( 3 levels switch) |
| Timing error | ≤1s（counting 1000s) |
| Testing Area | 10±0.05cm² |
| Measuring Pressure | 100kPa±2kpa |
| Gasket |
Thickness: 4±0.2mm Parallelism: 0.05 mm Diameter: no less than 45 mm Recovery elasticity: at least 62% Hardness: 45 ± IRHD (International Rubber Hardness) |
| Data Output | RS 232 (optional) |
| Working environment | Temperature: 3℃~35℃, Humidity<80%, no condensation |
| Power Supply | 220V, 50/60GHZ |
| Size(L×W×H, mm) | 370×330×390 mm |
| Weight | About 30kg |
