Wascator Automatic Shrinkage Tester For Fabric GT-D34

这里可以自定义设置
Wascator Automatic Shrinkage Tester For Fabric GT-D34
B站不支持收货地址
B站不支持库存规格
Model:
GT-D34
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
Gester
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容
这里可以自定义设置

Application



Wascator Automatic Shrinkage Tester accelerated washing apparatus for knitted and woven fabrics to assess shrinkage in accordance with international test methods. Also used for assessing fabric stability, color fastness, finish durability, spirality and pilling to washing.



Feature

Automatic Wascator Shrinkage Tester MCU program controller, build-in ten sets of washing program that ISO required, and operator program capability.

No need to fix to ground with foot screw, operating stably;

Soft link between rotating cage and rack, low vibration and noise;

Variable frequency motor, switch smoothly between high speed and low speed, low temperature increment of motor.

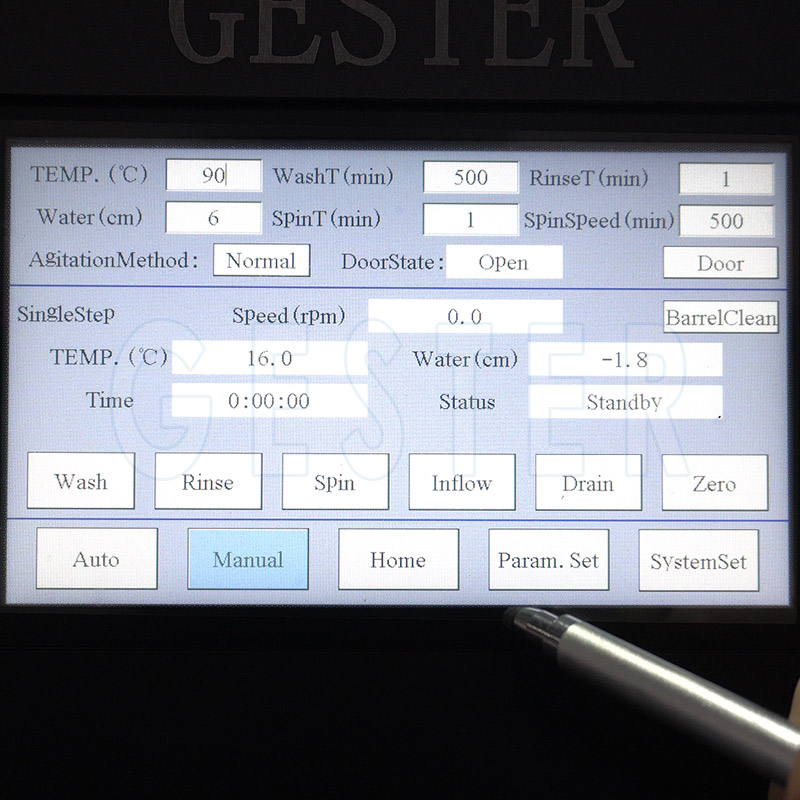

Blue fluorescence LCD display, test state dynamic icon shows, easier to catch the eye and operation convenience.

Non-touch capacitance water level meter to measure water level accuracy and reliable

Standards
GB/T8629, GB/T8630, ISO6330/5077, FZ/T70009, BS4923, EN25077/26330, JIS L1909, IWSTM31,ISO19954,
SATRA TM158
Key Specification
ModelGT-D34

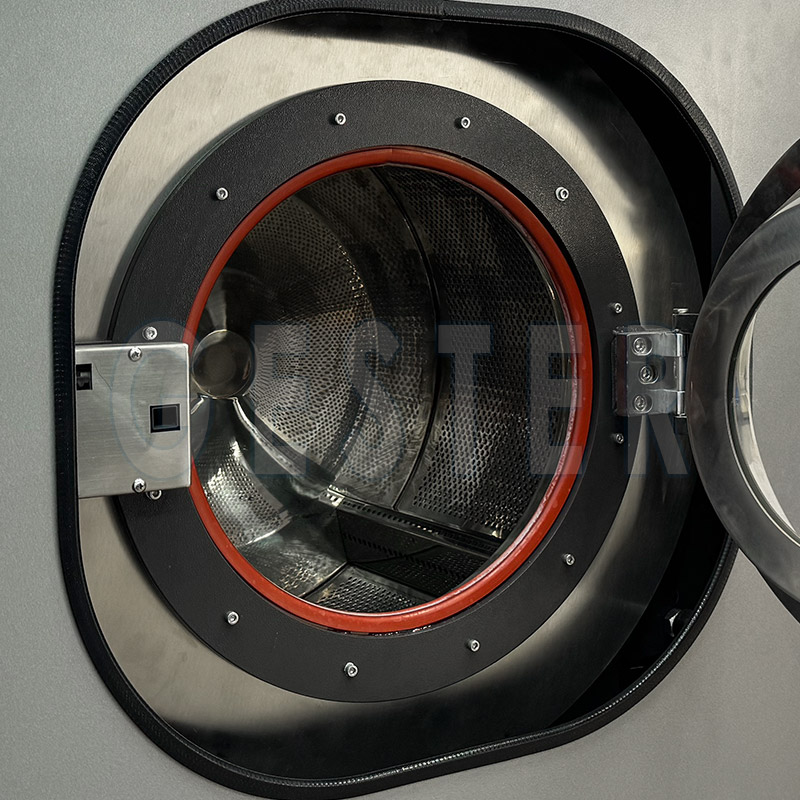

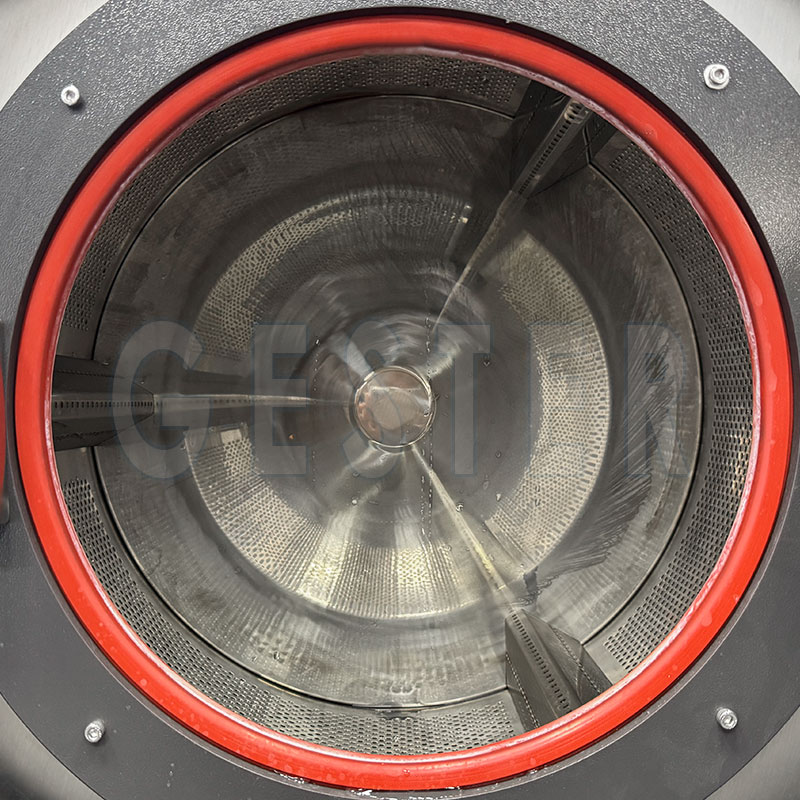

Washing modelfront-loading, horizontal tumbling-box type
Diameter of tumbling-box520±1mm
Depth of tumbling-box315±1mm
Number of Lifter3
Height of Lifter53±1mm
Rotating method normal model:
Clockwise Rotating
Anticlockwise Rotating Soft model:
Clockwise Rotating
Anticlockwise Rotating
12±0.1s,  pause 3±0.1s,
12±0.1s,  pause 3±0.1s 3±0.1s,   pause 12±0.1s,
3±0.1s,   pause 12±0.1s
Rotation speedWashing  52r/min
Low Spin (500±20)r/min
High Spin (800±20)r/min
Fill water time< 2min (water in high level 13cm)
Drainage duration< 1min (water in high level 13cm)
Heating power5.4±2%KW
Load weight5kg
Power supply

Ac 380V 50Hz 6500W

Instrument size990×980×1450mm(L×W×H)
Weight280kg
Accessories
Standard accessories1pcWater Faucet
1pcWater Inlet pipe
4pcsFoot Margin
