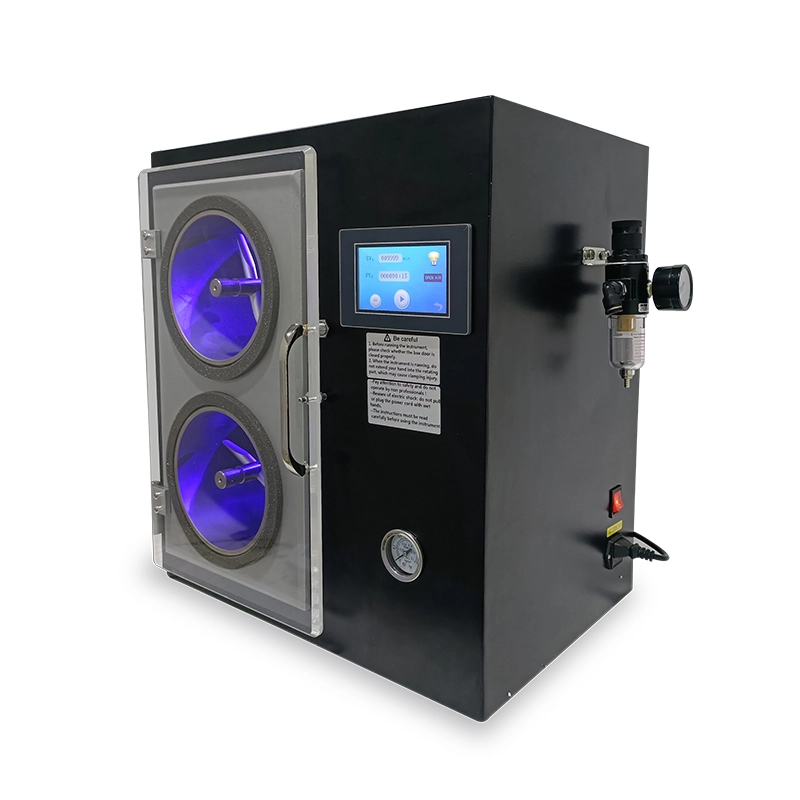

2 Test chambers Random Tumble Pilling Tester GT-C19A
Brief Introduction of the product
Application
Random tumble pilling tester, used to determine the pilling and fuzzing characteristics of textile fabrics. Precision high-speed impeller for agitating the test specimens against cork lining for a pre-determined time controlled by a timer and audible alarm. Compressed air is also injected into the chamber to assist in the tumbling action. Laboratory standard compressed air supply required.
Feature:
1. Touch screen control is more intelligent and convenient to operate.
2. With self-protection, when open the chamber door, the motor will stop automatically.
3. Press the start button, the air source and motor work at the same time. When the experiment is
completed, the machine will automatically stop and a buzzer to remind.
4. The rotating assembly adopts a round pulley. The instrument runs more smoothly.
Model | GT-C19A | GT-C19B |
Test chambers | 2 Test chambers | 4 Test chambers |
Rotating speed | 1200rpm | |
Tumble dimensions | Φ(146±1), Depth(152±1)mm | |
Specimen | 105 x105mm | |
Cork lining | 452 x146x1.5mm | |
Power supply | AC220V 50/60Hz | |
Dimensions | 540×380×500mm (L×W×H) | 720×430×850mm(L×W×H) |
Weight | 60kg | 80kg |
Accessories
Standard accessories | 1pc | Power line |
Optional accessories | Optional | Cotton sliver |
Optional | Cork lining | |
Optional | Standards photograph | |
Optional | Air compressor | |
Optional | Cleaner |
