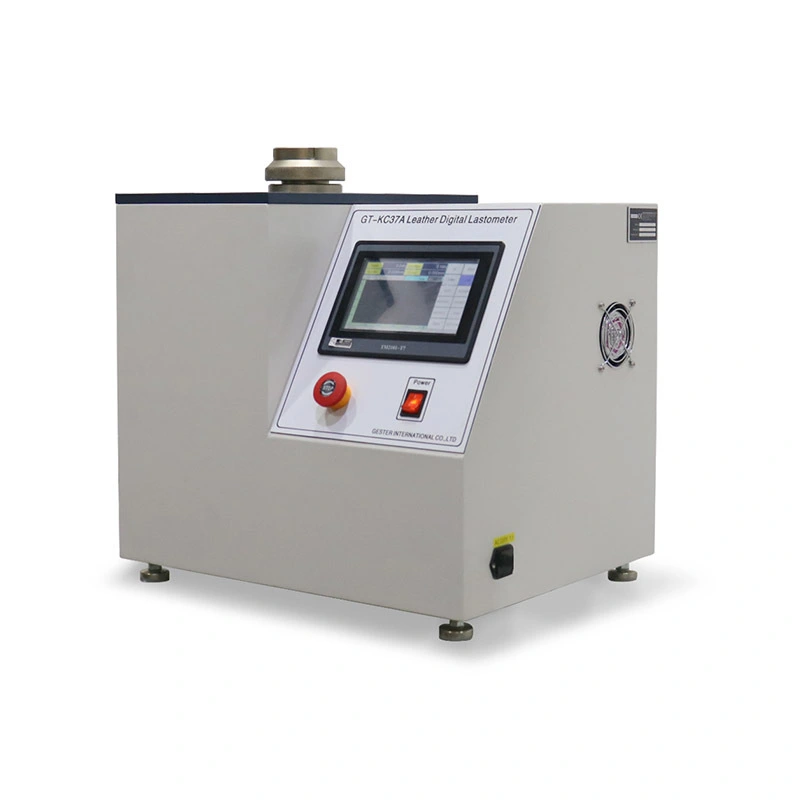

Digital Lastometer Leather Cracking Tester GT-KC37A
GT-KC37A
Digital Lastometer Leather Cracking Tester Description
Application
To determine the anti-cracking index for upper, leather facing and all kinds of thin leather. Fixed the clamp frame round the sample, jacked up the ball to the inside of leather with 12mm/min. When leather is cracking, the value of increase height is the crack value.
Standards
BS 3144 section 8, ISO 3379, ISO17693, DIN 53325,
GB/T3903.38, QB 3812.7, QB 2712, SATRA TM166, SATRA TM24
Key Specification
|
Max. Load |
1000N |
|
Control mode |
Touch screen controlled |
|
Clamp diameter |
25mm |
|
Bursting ball diameter |
6.25mm |
|
Speed |
12mm/min |
|
Sample size |
Diameter: 44.5mm |
|
Power Supply |
1∮AC 220V 50/60HZ |
|
Dimensions |
54 x 47 x 52cm |
|
Weight |
42kg |
Accessories
|
Standards accessories |
Power line |
|
Optional accessories |
GT-KD20 Pneumatic Sample Cutting Machine (Cutting die of diameter 44.5mm) |
