Automatic Crimp Tester for Yarn GT-C180B

这里可以自定义设置
Automatic Crimp Tester for Yarn GT-C180B
B站不支持收货地址
B站不支持库存规格
Model:
GT-C180B
MOQ:
1 Piece
Place of Origin:
Quanzhou,China(Mainland)
Brand
GESTER
参数暂无数据
多属性暂无数据
B站不支持优惠卷
暂无分享
B站不支持产品保障
该产品后台详情无内容

Product Description

Application
Automatic Yarn Crimp Tester, to calculate the crimp in yarn affected by knitting or weaving by taking apart the yarn from a piece of given-length fabric, unbending it under given force and measuring its length, to determine actual yarn usage.



Features

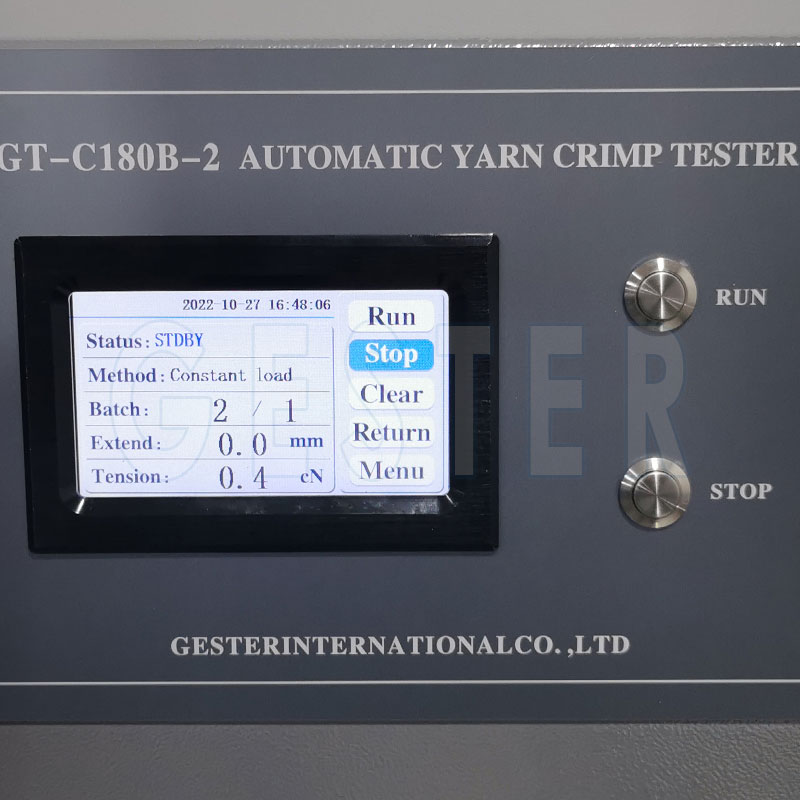

1. Touch panel display and control
2. The right fixture can extend automatically with adjustable tensile speed.
3. Real time displays the value of force and elongation, testing curve can be shown as well.
4. Equip with a high precision load cell.



Standards
EN14970, ASTM D 3883, ISO7211-3, ISO 7211-5, AFNOR G 07-104, AFNOR G 07-101, NF G07-104,
GB/T 29256.3-2012, GB/T 29256.5-2012, FZ/T01091, FZ/T01093, BS 5441, DIN 53830 Part 3, clause 8.1.2

Table – Key Specification

Model

GT-C180B-1

GT-C180B-2

Control mode

Touch screen controlling

Load range

200CN

1000CN

Stroke

10-1000mm

Stroke Resolution

0.01mm

Dimensions

1400 x 200 x 200 mm

Power Supply

AC 220V 50/60HZ

Weight

50kg


Product Details

Superb value for money, packed with every feature you need.
