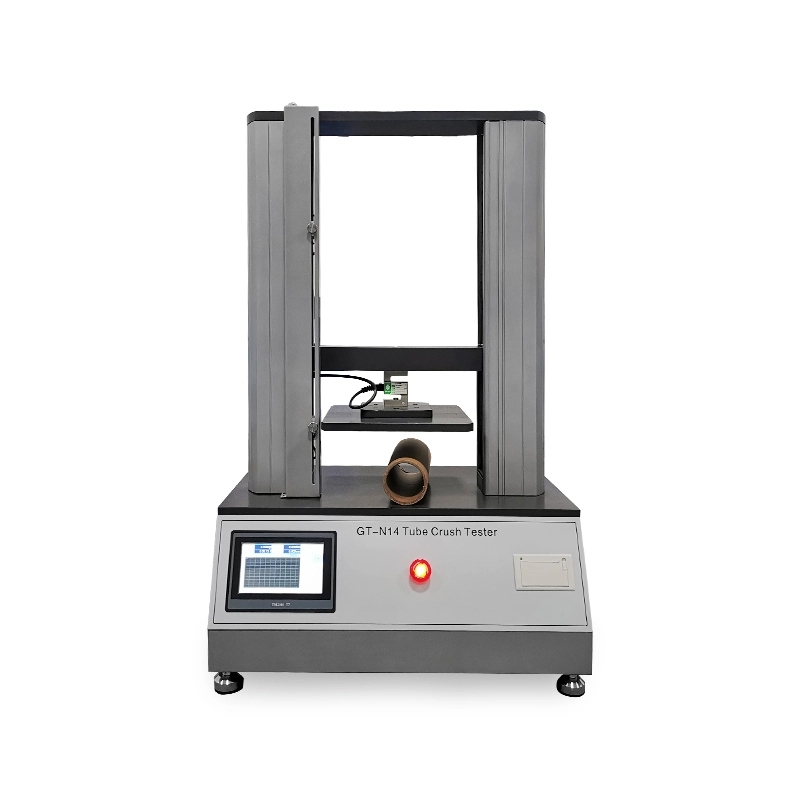

Paper Tube Crush Tester GT-N14
Paper Tube Crush Tester GT-N14 Application
This paper tube crush tester is designed to evaluate the compressive strength characteristics of materials. It is primarily used for testing various small containers or honeycomb structures with diameters under 300mm, including paper industry tubes, chemical fiber tubes, and carton packaging. Additionally, it can perform compressive strength and deformation tests, as well as assess tube paperboard properties such as RCT, ECT, FCT, PAT, and CMT.
The Paper tube compression tester complies with ISO standards and the latest national standards for paper tubes. It adopts an electromechanical integration structure, incorporating modern mechanical design principles and computer technology to ensure an optimized and rational design.
The Core Compression Tester features a fixed platen for high-precision measurements. Equipped with advanced data-processing capabilities, it provides direct test results along with real-time pressure curve displays.
Standards
ISO 11093-9, BB/T 0032
Paper Tube Compression Tester Features
1. Rapid return speed after test completion.
2. Automated measurement, statistical analysis, and printing of test results, with data storage functionality.
3. Touchscreen control and real-time display of crushing time, loading force, and dynamic crush graph.
4. High-speed thermal printer with silent operation.
5. Compact and aesthetically designed with electromechanical integration for easy maintenance.
Tube Crush Tester Key Specification
|
Models |
GT-N14A |
GT-N14B |
|
Plate Size |
200 x 300 mm |
300 x 300 mm |
|
MAX stroke |
200 mm |
300 mm |
|
Measuring Range |
0-5000N |
|
|
Compression Speed |
0-60mm/min (Can be adjusted digitally)) |
|
|
Display |
Touch screen |
|
|
Printer |
Thermal printing, high speed and no noise |
|
|
Power Supply |
220V 50/60Hz |
|
|
Dimension |
About 700 × 500 × 1100mm (L × W × H) |
|
|
Weight |
About 120kgs |
|
