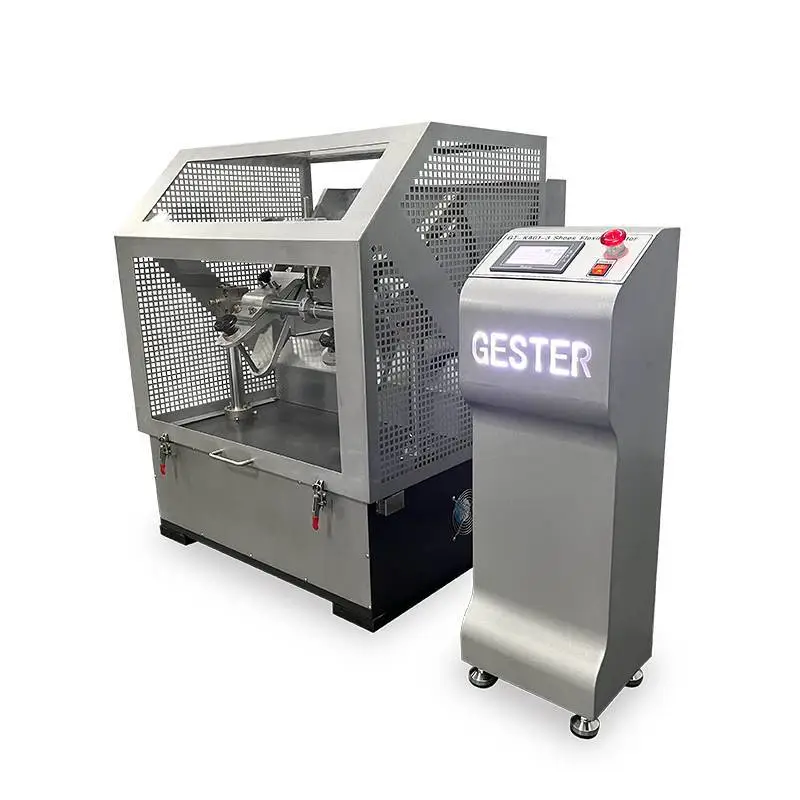

Shoes Flexing Tester GT-KA01-3
Application
It’s used for determine the flexing resistance for whole shoe or shoe sole (sheet) at room temperature.
Flex the specimen under a specified angle and frequency to assess its cracking degree and observe the change of it`s upper.
Feature
- 1.The number of flex cycles can be set and displayed on the control panel;
- 2.The counter and the machine will stop automatically when the set value has bee reached;
- 3.The protective shield is equipped for safety operation and noise reduction;
4.A fan is installed on each set of clamps to prevent shoes from changing characteristics caused by high temperature during flexing.
Product Parameters
Key Specification
Model | GT-KA01-3A | GT-KA01-3B |
Test position | 2 | 4 |
Bending angle | 0~55 degree | |
Counter | Touch screen control | |
Bending speed | 230 ± 10 rpm (adjustable) | |
Power supply | 1∮AC 220V 50/60HZ 8A | |
Dimensions (L x W x H) | 159×88×140 cm | 209×88×3500px |
Weight | 560 kg | 750kg |
Standards | GB/T 3903.1, ISO 24266 Method B, HG/T 2871-2022 Method A | |
Accessories
Standards accessories | 2 Pairs | Shoe last (Size 35, Size 44 or by customer requires) |
1pc | Power line | |
1pc | Chisel cutter（5mm） | |
Option accessories | Optional | Calipers (accuracy 0.02mm) |
Optional | Shoe last (Size 36, 37, 38, 39, 40, 41, 42, 43) |
